FC8000-UM-251-9370 2-6
2. PARTS NAMES and FUNCTIONS

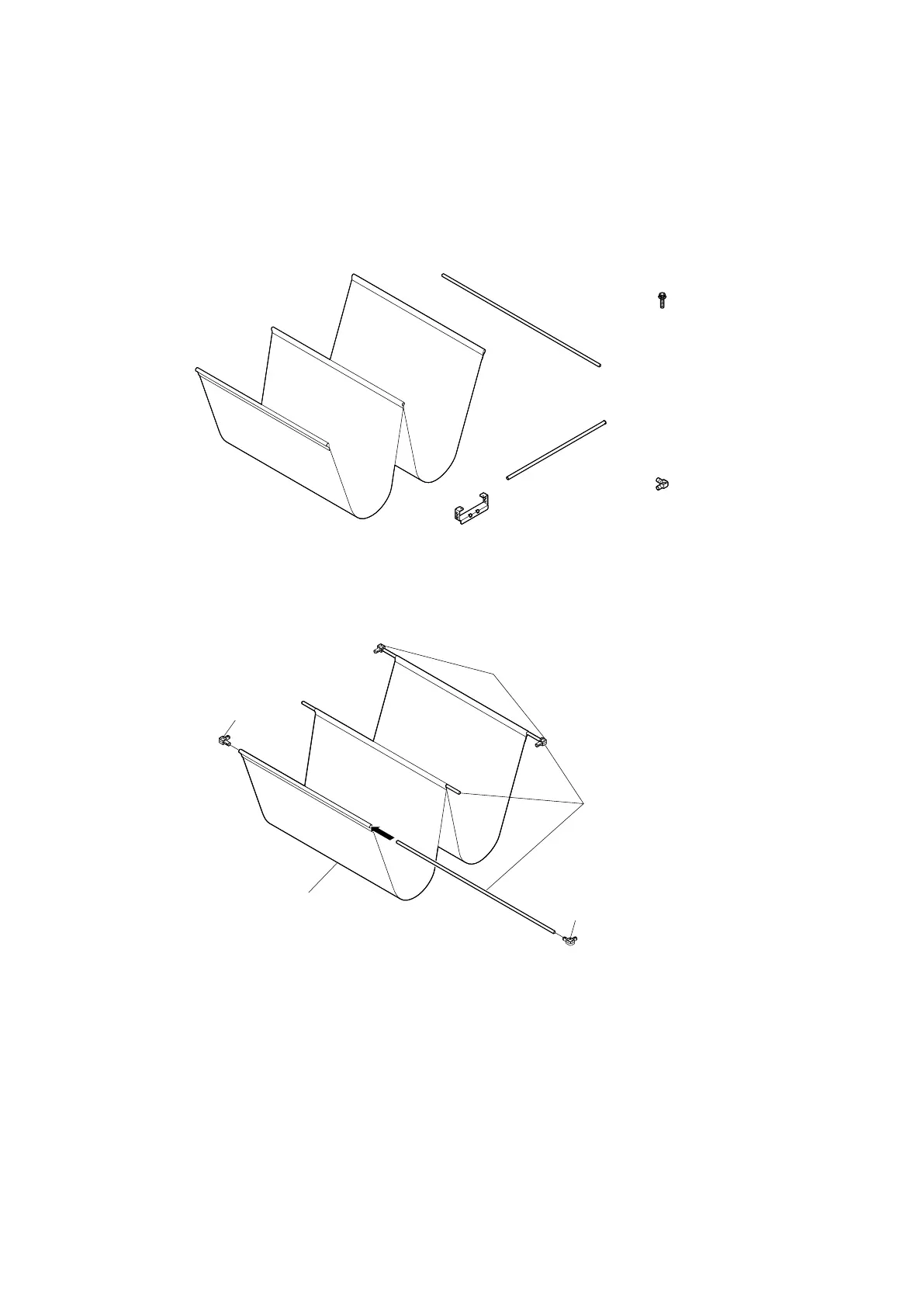

Attaching the Basket
Thebasketisattacheddirectlytotheplotter.
Thebasketismadeupofthefollowingparts.
Basketx1,baskettubes(long)x3,baskettubes(short)x4,jointsx4,mountsx2,socketcapheadscrews
x4,useAllenwrenchtoassemblethebasket.
Besuretousethebasketwhencuttinglong-axismediaofmorethan1meteristobeproduced.
Cloth basket Basket tube (long) x 3
Socket head cap
screw
(M5) x 4
Mount x 2
Basket tube (short) x 4
Joint x 4
Assembly
(1) Insertthebaskettubes(long)intobothendsandcenterofthebasket.Attachthejointstotheendofthe
2outsidebaskettubes.
Cloth basket
Basket tube (long)
Joint
Joint
Joint
