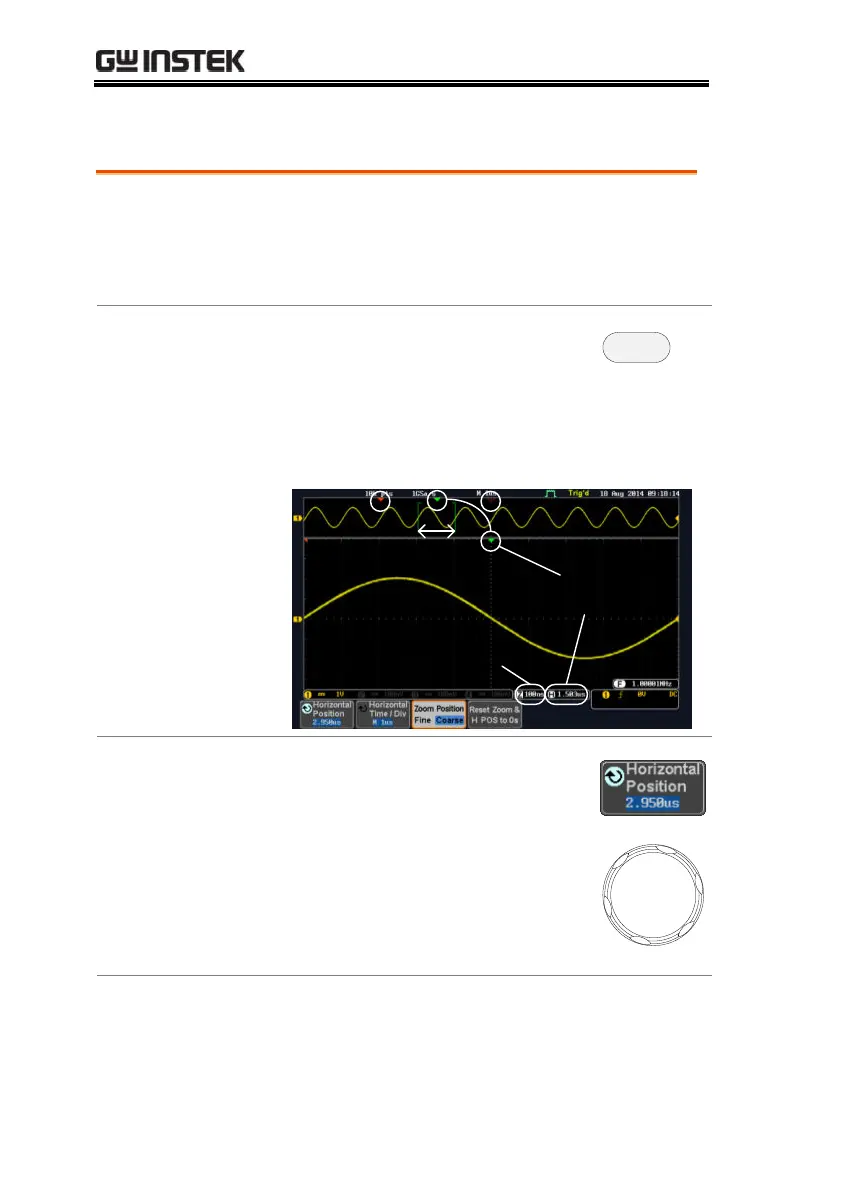

GDS-2000E Series User Manual
108
Zoom Waveform Horizontally
Background
When in Zoom mode, the screen is split into 2
sections. The top of the display shows the full
record length, while the bottom of the screen
shows the normal view.
Panel Operation
1. Press the Zoom key.
Zoom
2. The Zoom mode screen appears.
Zoom
timebase
Zoom
position
Zoom
window
Horizontal
position
Trigger
position
Horizontal
Navigation
To scroll the waveform left or right,
press Horizontal Position and use the
Variable Position knob.
The horizontal position will be shown
on the Horizontal Position icon.
VARIABLE
