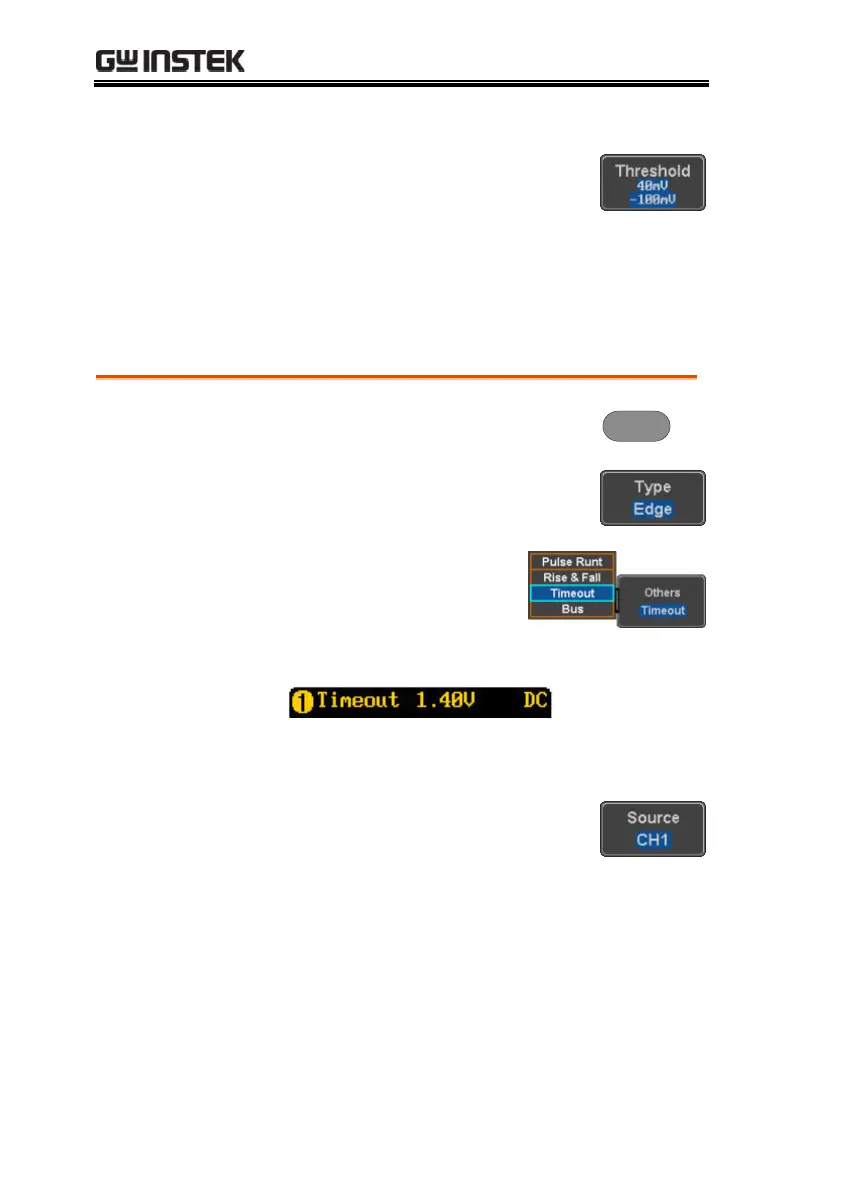

GDS-2000E Series User Manual
162
Width
4ns ~ 10s
7. Press Threshold from the lower
bezel to edit the High and Low
threshold.
Range
High: -XXV~XXV
Low: -XXV~XXV
Using the Timeout Trigger
Panel Operation
1. Press the trigger Menu key.
Menu
2. Press the Type key from the lower
bezel menu.
3. Select Others
Timeout
from the side menu. The
Timeout indicator appears
at the bottom of the
display.
From left: Source, Trigger type, threshold
level, coupling
4. Press Source from the lower menu.
Use the side menu to select a source.
Range
Channel 1 ~ 4, EXT (Ext Probe:
Volt/Current, Attenuation:
1mX~1kX ), AC Line
