GW Instek GDS-2000E Series User Manual

CONFIGURATION
163

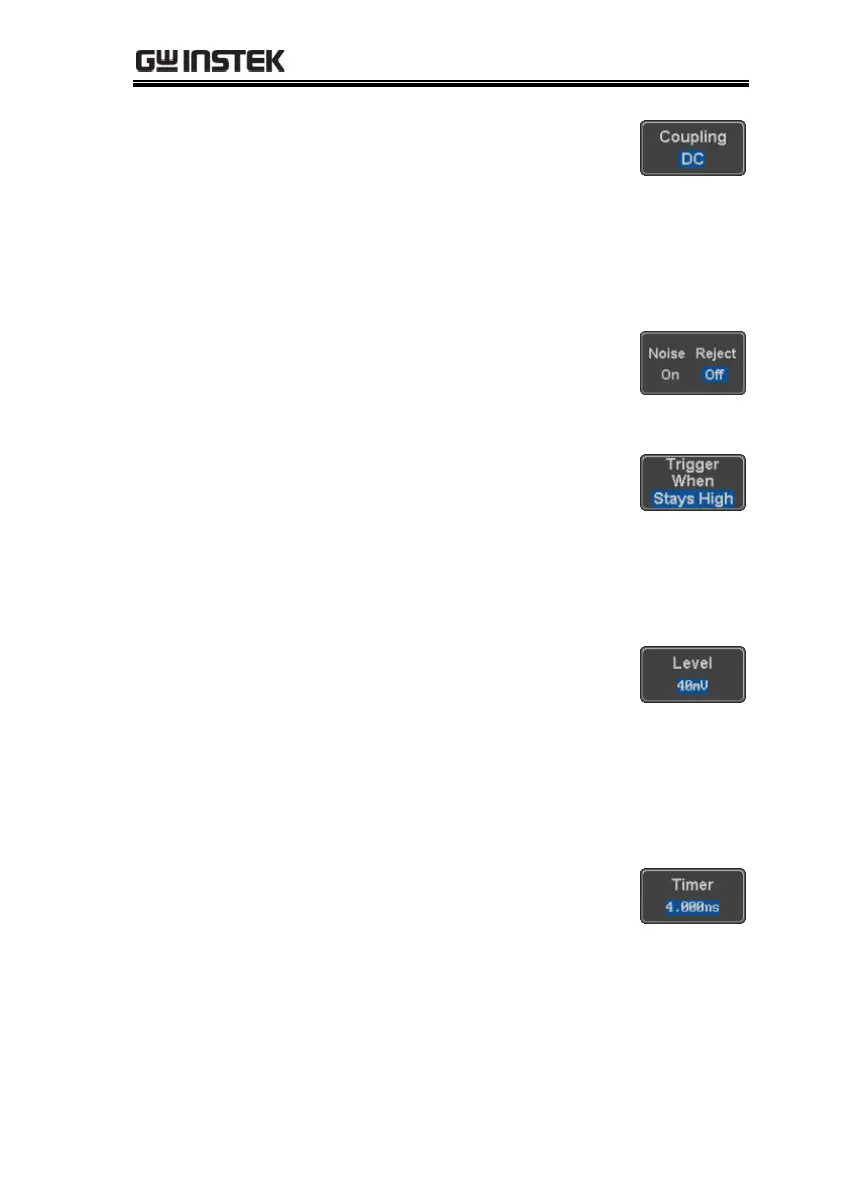

5. Press Coupling from the bottom
bezel menu to select the trigger
coupling or frequency filter
settings.
Choose the coupling from the side menu.
Range
DC, AC, HF Reject, LF Reject
6. Toggle Noise Rejection On or Off
from the Coupling side menu.
Range
On, Off
7. Press Trigger When from the lower
menu.
Then use the side menu to select trigger
conditions.
Condition
Stays High, Stays Low, Either
8. Press Level from the lower bezel to
set the trigger level.
Range
-XXV~XXV
Set to TTL 1.4V
Set to ECL -1.3V
Set to 50%
9. Press Timer from the lower bezel to
set the timer time.
Range
4ns~10.0S
