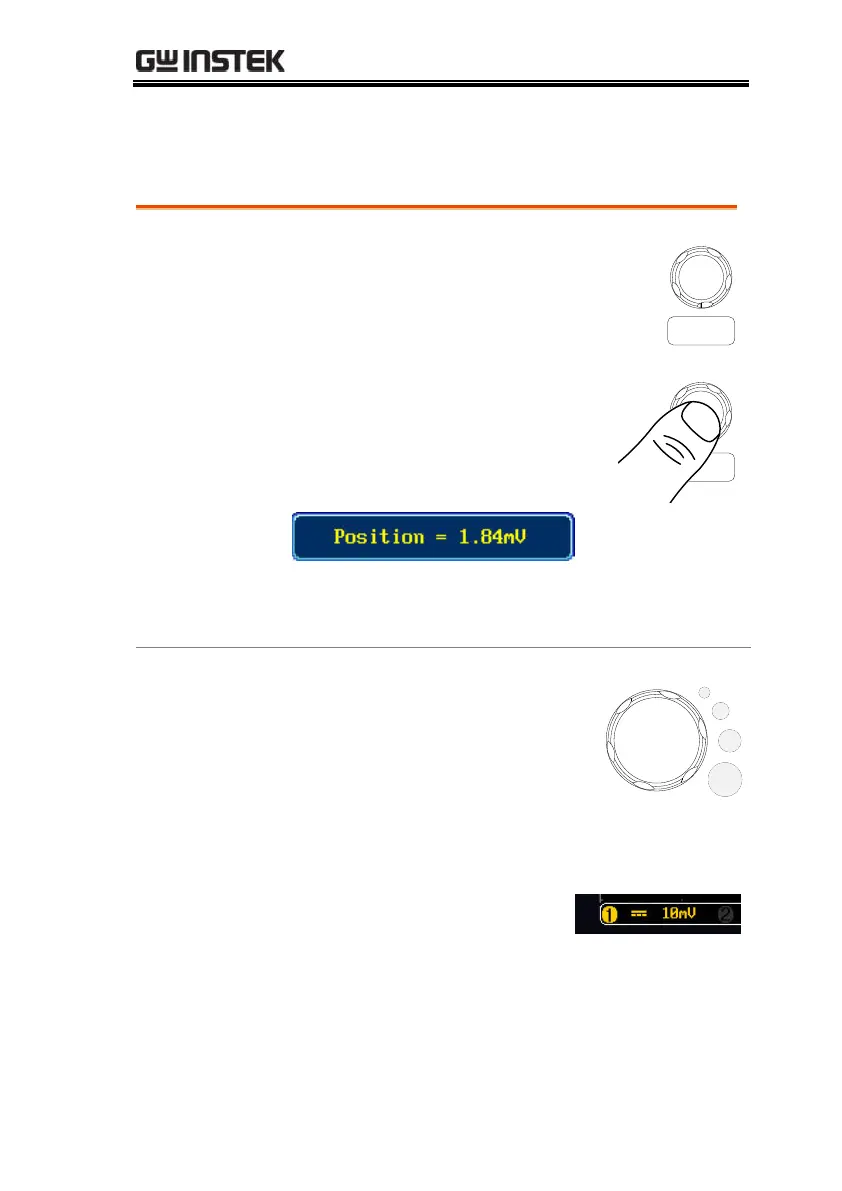

Page #45 background imageLoading...
Page #45 background image
MEASUREMENT
45
Vertical Position/Scale
For more detailed configuration, see page 114.
Set Vertical
Position
To move the waveform up or down, turn
the vertical position knob for each channel.
POSITION
PUSH TO
ZERO
Push the vertical position knob to
reset the position to 0.
As the waveform moves, the
vertical position of the cursor
appears on the display.
POSITION
PUSH TO
ZERO
Run/Stop
mode
The waveform can be moved
vertically in both Run and Stop
mode.
Select Vertical
Scale
To change the vertical scale, turn
the vertical SCALE knob; left
(down) or right (up).
SCALE
Range
1mV/div ~ 10V/div
1-2-5 increments
The vertical scale indicator for
each channel on the bottom of
the display changes
accordingly.
