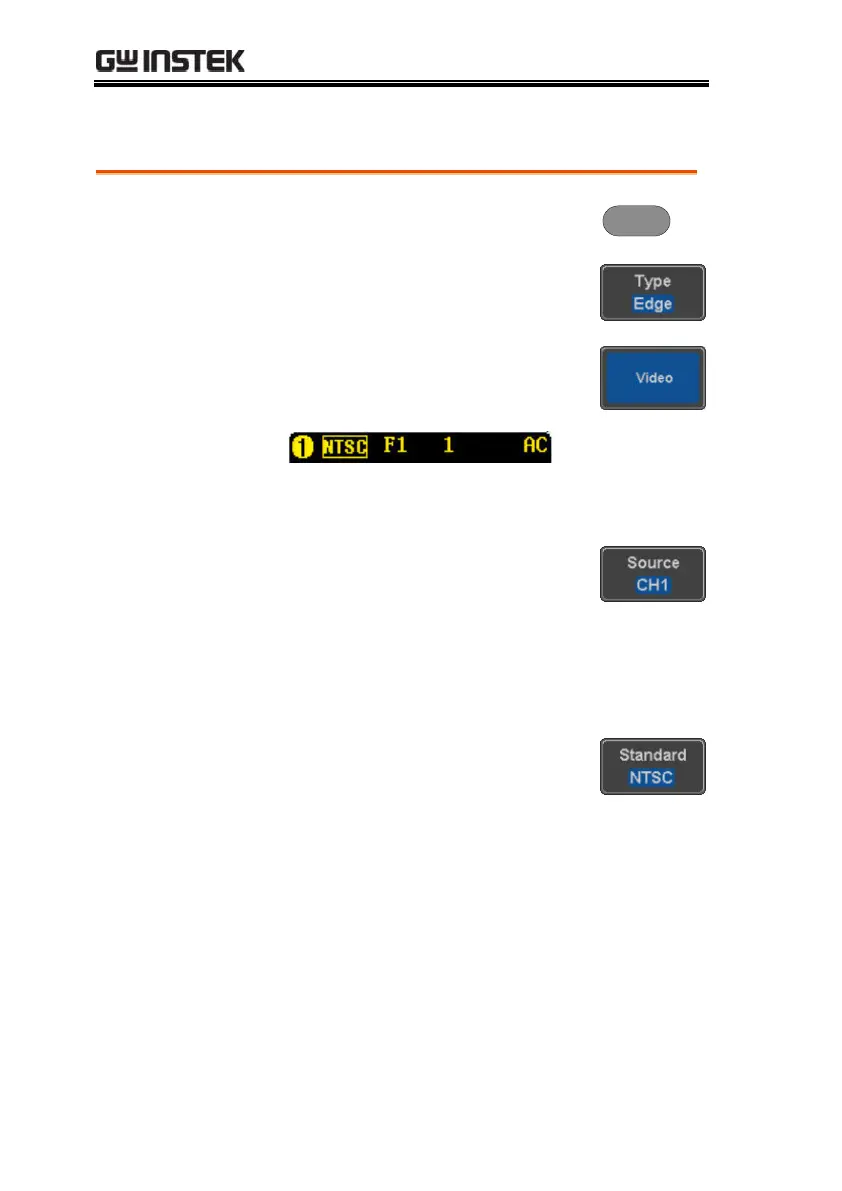

Using Video Trigger
Panel Operation
1. Press the trigger Menu key.
Menu
2. Press the Type key from the lower
bezel menu.
3. Select Video from the side menu.
The video trigger indicator appears
at the bottom of the display.
From left: source, video standard, field, line,
coupling
4. Press Source from the lower bezel.
5. Use the side menu to select the
video trigger source.
Range
Channel 1 ~ 4
6. Press Standard on the bottom bezel.
Use the side menu to select the video standard.
Range
NTSC, PAL, SECAM, EDTV(480P,
576P), HDTV(720P, 1080i, 1080P)
