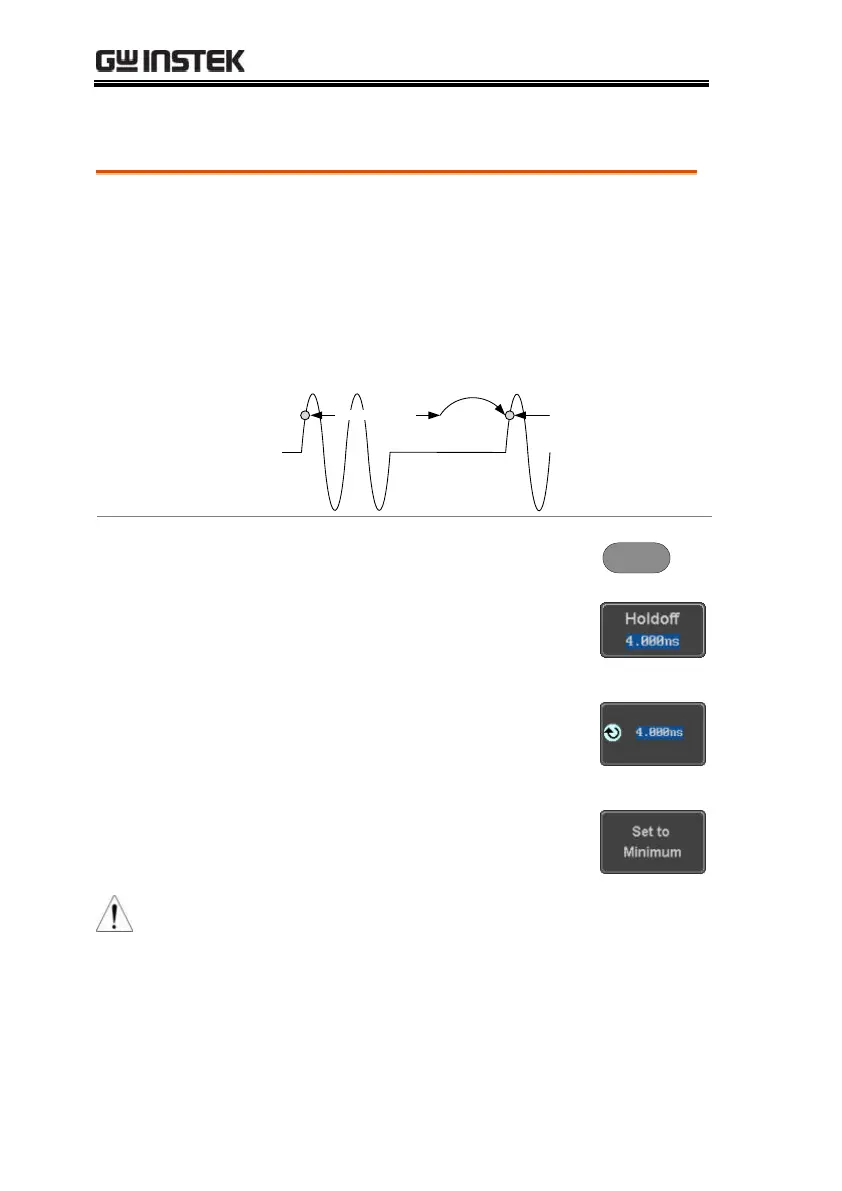

Setup Holdoff Level
Background
The holdoff function defines the waiting period
before the GDS-2000E starts triggering again after
a trigger point. The holdoff function ensures a
stable display if there are a number of points in a
periodic waveform that can be triggered. Holdoff
applies to all the triggering types.
Wait for
trigger
Holdoff time
Trigger point
Next trigger point
Panel Operation
1. Press the trigger Menu key.
Menu
2. To set the Holdoff time, press the
Holdoff (or Mode/Holdoff) menu
button on the bottom bezel.
3. Use the side menu to set the
Holdoff time.
Range
4ns~10s
Pressing Set to Minimum sets the
Holdoff time to the minimum,
4ns.
Note
Note: The holdoff function is automatically
disabled when the waveform update mode is in
roll mode (page107).
