CONFIGURATION
169

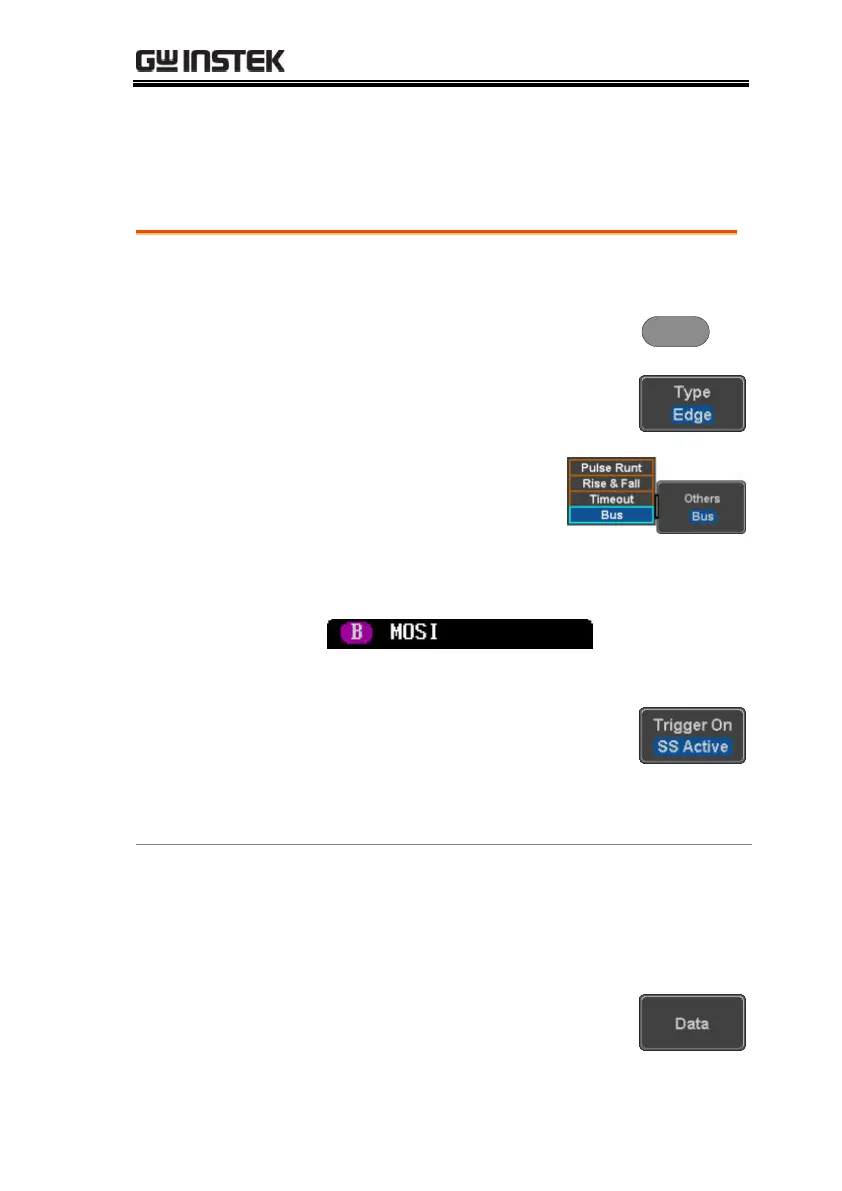

SPI Bus Trigger Settings
The SPI bus trigger conditions can be set at any time after the bus
setting has been set to SPI.
1. Set the Bus to SPI in the bus menu.
2. Press the Trigger Menu key.
3. Press Type from the bottom menu.
4. Press Others from the side
menu and select Bus.
The Trigger on settings will be reflected on the
Trigger Configuration icon.
From left: Bus trigger, Trigger source
5. Press Trigger On and select the
triggering condition for the SPI
bus.
SS Active, MOSI, MISO,
MOSI&MISO
If MOSI, MISO or MISO/MOSI was
configured for the Trigger On setting, then the
number of words and the data can be
configured.
6. Press Data from the bottom menu.
