GDS-2000E Series User Manual
114

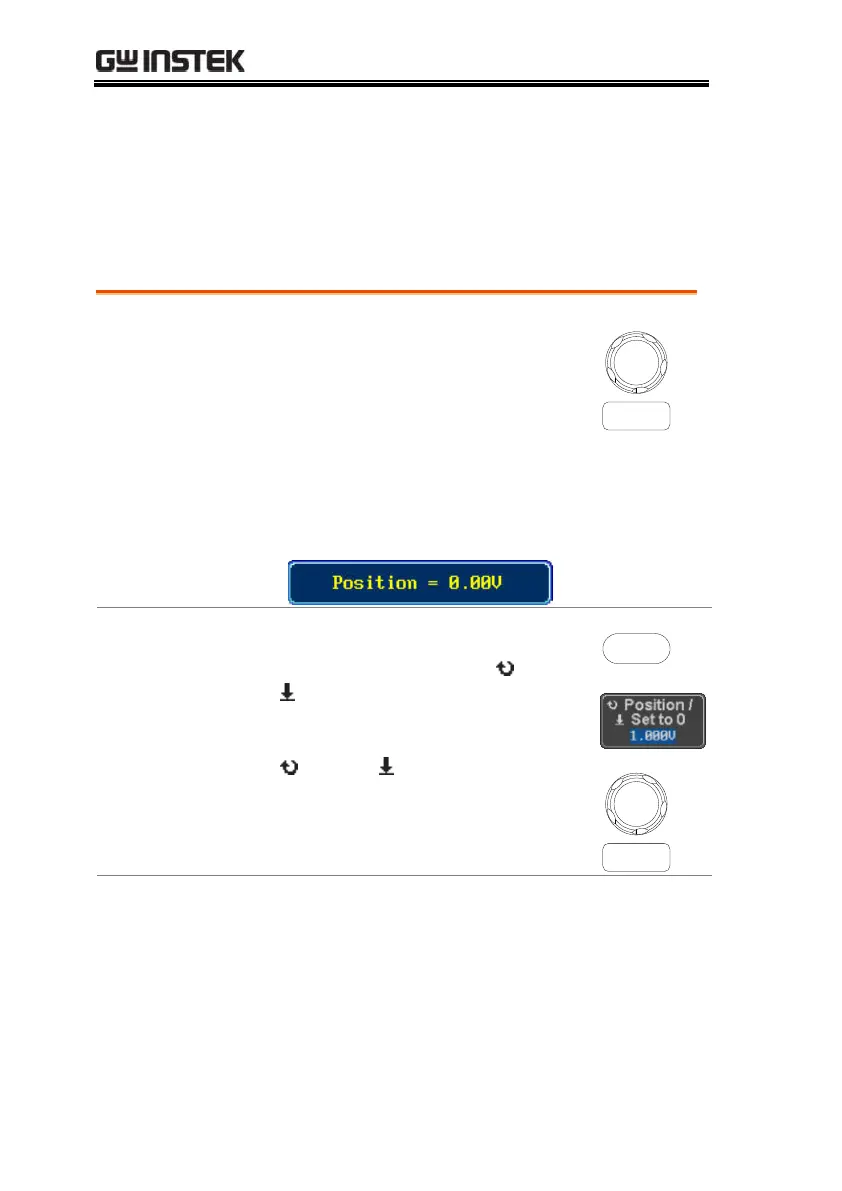

Vertical View (Channel)
This section describes how to set the vertical scale, position, and
coupling mode.
Move Waveform Position Vertically
Panel Operation
1. To move the waveform up or
down, turn the vertical position
knob for each channel.
POSITION
PUSH TO
ZERO
2. As the waveform moves, the vertical position of
the cursor appears at the bottom half of the
display.
View or Set the
Vertical Position
1. Press a channel key. The vertical
position is shown in the Position /
Set to 0 soft key.
2. To change the position, press
Position / Set to 0 to reset the
vertical position or turn the vertical
position knob to the desired level.
CH1
POSITION
PUSH TO
ZERO
Run/Stop Mode
The waveform can be moved vertically in both
Run and Stop mode.
