GW Instek GDS-2000E Series User Manual

CONFIGURATION
159

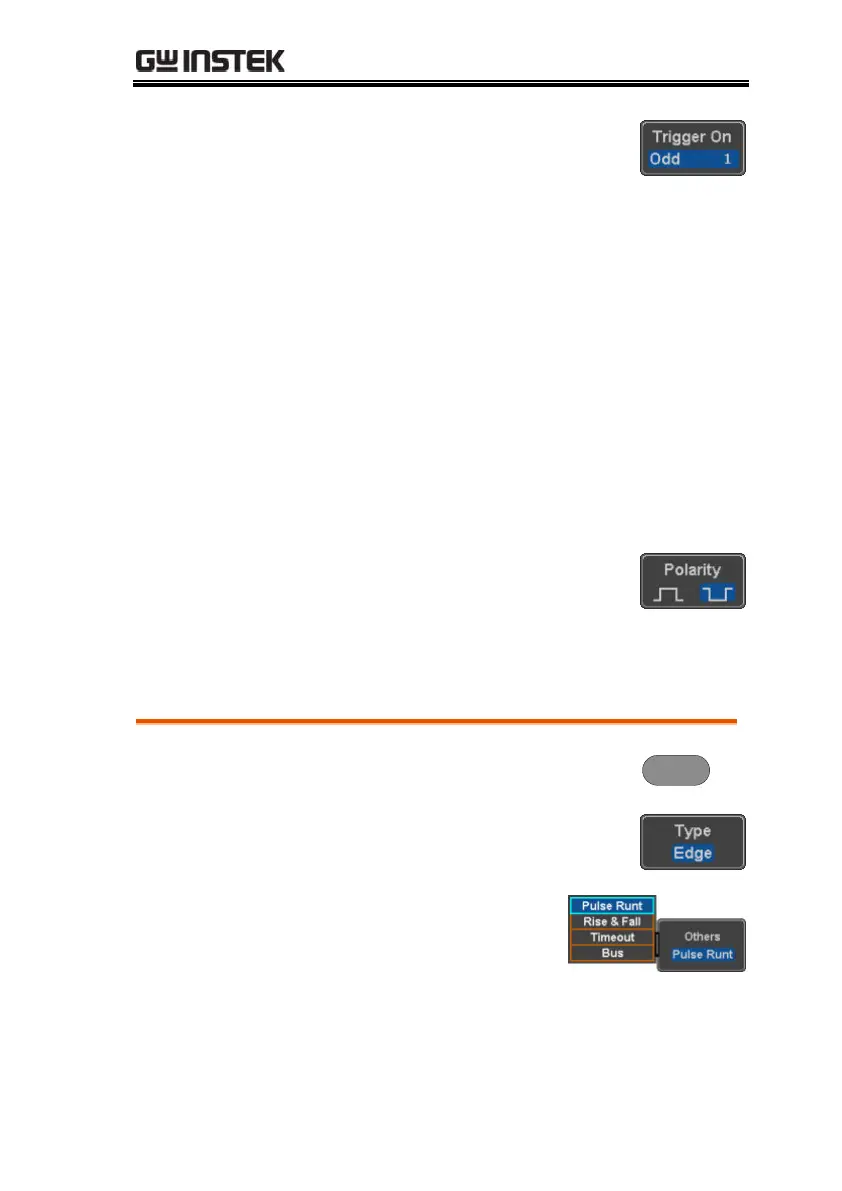

7. Press Trigger On to edit the video
field and line.
Use the side menu to select the field and line.
Odd Field
NTSC: 1 ~ 263
PAL/SECAM: 1 ~ 313
EDTV: 1~525(480P), 1~625(576P)
HDTV: 1~750(720P), 1~563(1080i),
1~1125(1080P)
Even Field
NTSC: 1 ~ 262
PAL/SECAM: 1 ~ 312
HDTV: 1~562(1080i)
All Fields
Triggers on all fields.
All Lines
Triggers on all lines.
8. Press Polarity to toggle the polarity
type.
Range
positive, negative
Pulse Runt trigger
Panel Operation
1. Press the trigger Menu key.
Menu
2. Press the Type key from the lower
bezel menu.
3. Select Others → Pulse Runt
from the side menu. The
Pulse and Runt indicator
appears at the bottom of
the display.
