CONFIGURATION
143

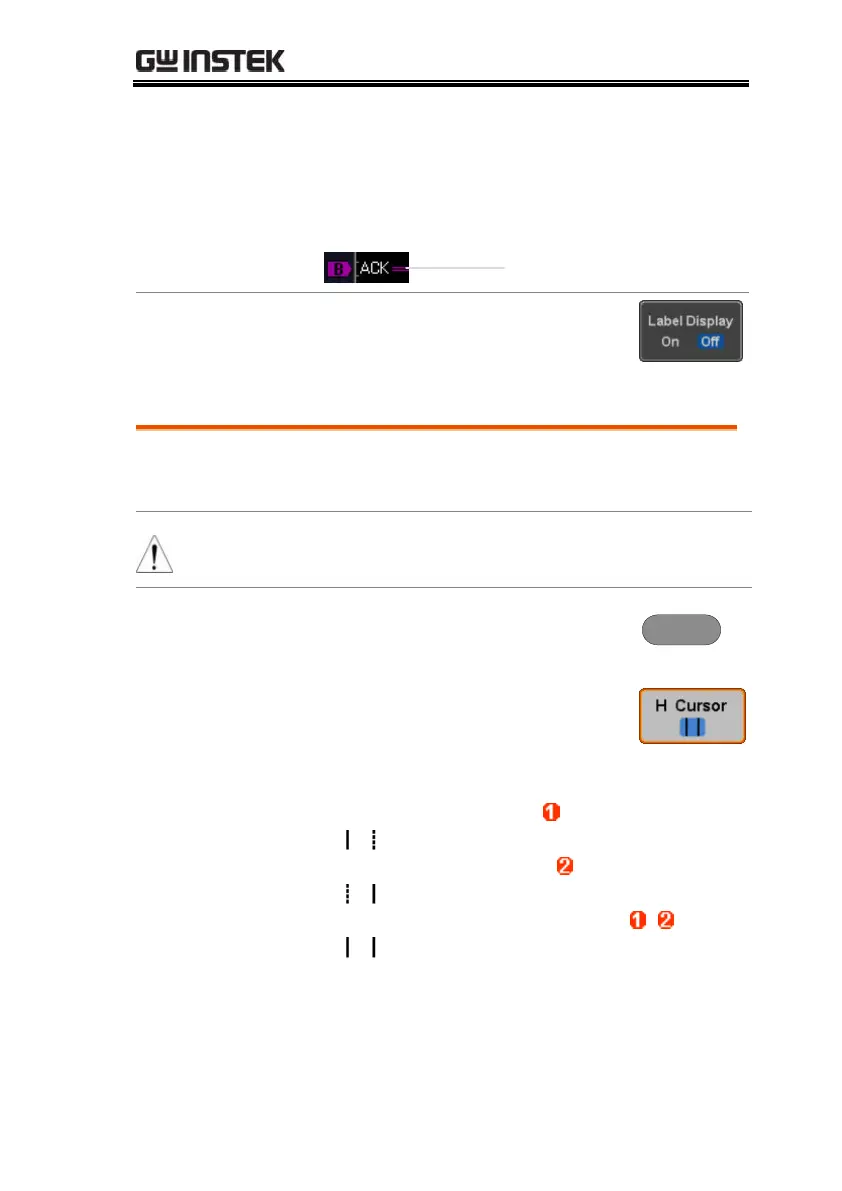

6. The label will appear next to the bus indicator.
Below, the label “ACK” was created for the
bus.
The bus is labeled
as ACK
Press Label Display to toggle the label
on or off.
Using Cursors with the Serial Bus
The cursors can be used to read bus values at any
position.
Ensure that one of the serial buses has been
selected and is activated.
1. Press the Cursor key. Horizontal
cursors appear on the display.
2. Press the H Cursor soft-key and
select which cursor(s) you wish to
position.
Left cursor ( ) movable, right
cursor position fixed
Right cursor ( ) movable, left
cursor position fixed
Left and right cursor ( + )
movable together
