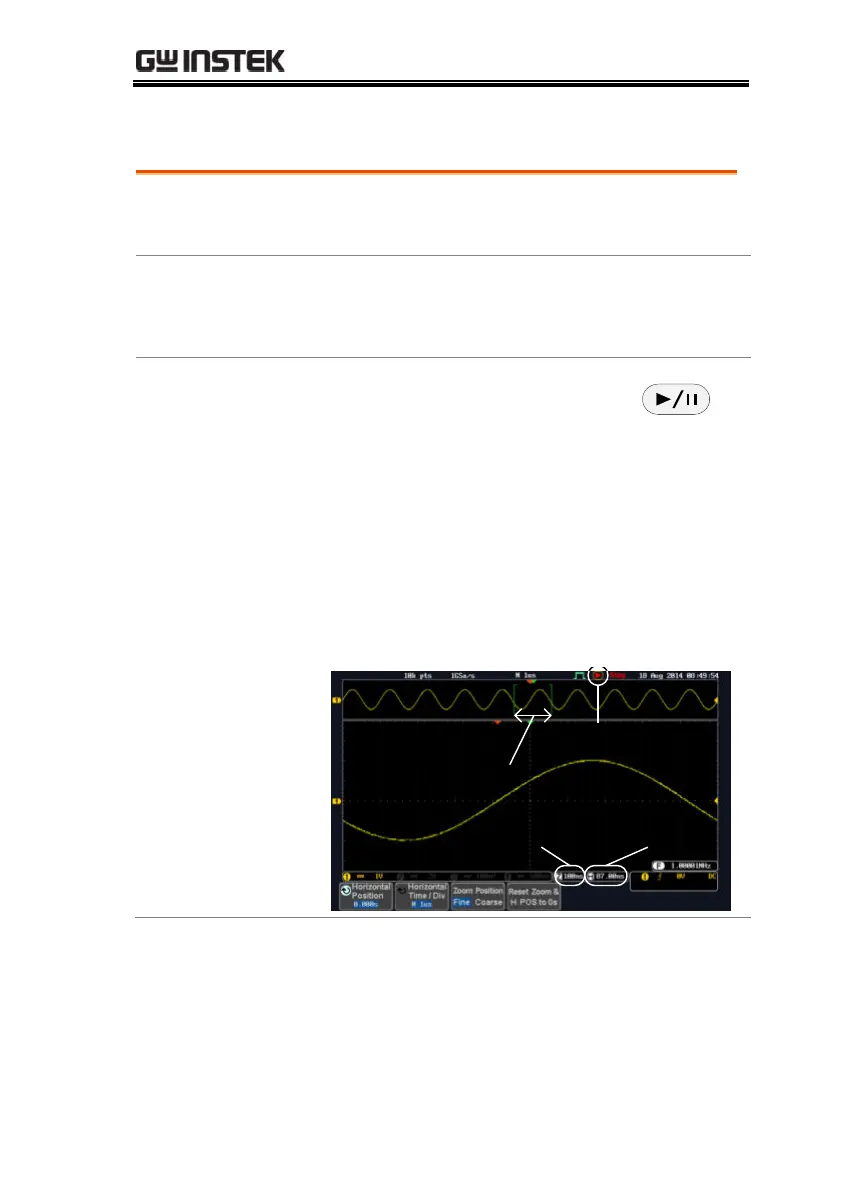

CONFIGURATION
111
Play/Pause
Background
The Play/Pause key can be used to play through
signals in the Zoom mode.
Note
If the Segmented memory function is turned on,
pressing the play pause key will play through
memory segments. See page 92 for information.
Panel Operation
1. Press the Play/Pause menu key.
2. The scope will go into the Zoom Play mode and
begin to scroll through the acquisition (from left
to right).
The full-record length waveform will be shown
at the top and the zoomed section will be
shown at the bottom. The Play/Pause indicator
shows the play status.
Zoom
timebase
Zoom
position
Zoom
window
Play/Pause
indicator
