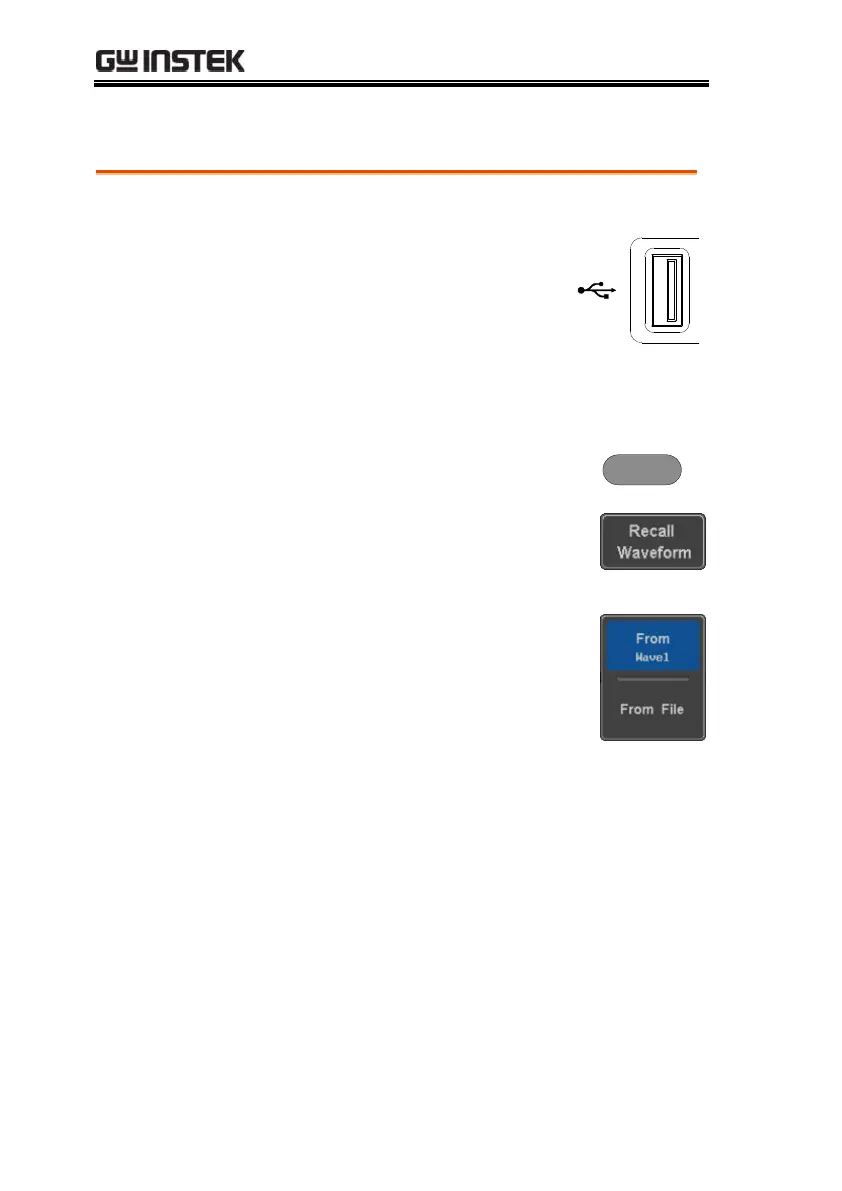

Recall Waveform
Panel Operation
1. For recalling from an external
USB flash drive, connect the
drive to the front or rear panel
USB port.
Front Panel
2V
2. The waveform must be stored in advance. See
page 227 for waveform store details.
3. Press the Save/Recall key.
Save/Recall
4. Press Recall Waveform from the
bottom menu. The Recall menu
appears.
5. Press From (internal memory) or
From File and choose a source to
recall from.
From
Wave1~20
From File*
File format: Lsf, Fast Csv
*Only files in the current file path will be
available, this includes files saved in the
ALLxxxx directories.
Allxxxx.csv files cannot be recalled to the
oscilloscope.
Only the “Fast CSV”, “LSF” files can be
recalled to the oscilloscope.
