GW Instek GDS-2000E Series - Using the Data Logger

APPS
201

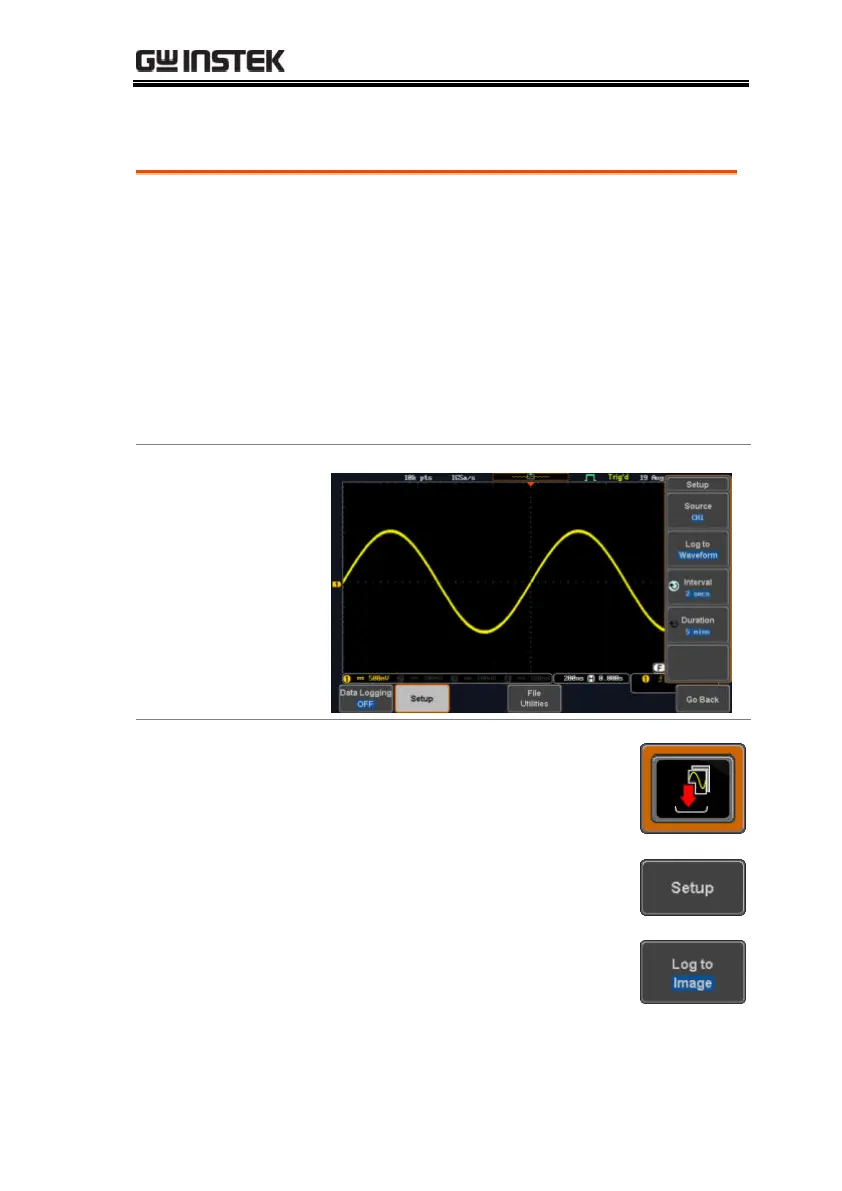

Using the Data Logger
Background
The Data Log app will log the current waveform
data or screenshot at set intervals for a set duration
of time.
Basic Features:
 Log up to 100 hours of images or waveform
data.
 Interval times of up to 2 seconds (waveform)
or 5 seconds (images).
Example
Panel Operation
Choose the Data Log application from
the APP menu. See page 193.
1. Press Setup.
2. Press Log to from the side menu
and select what type of data to log,
waveform data or screenshots.
Log to
Image, Waveform
