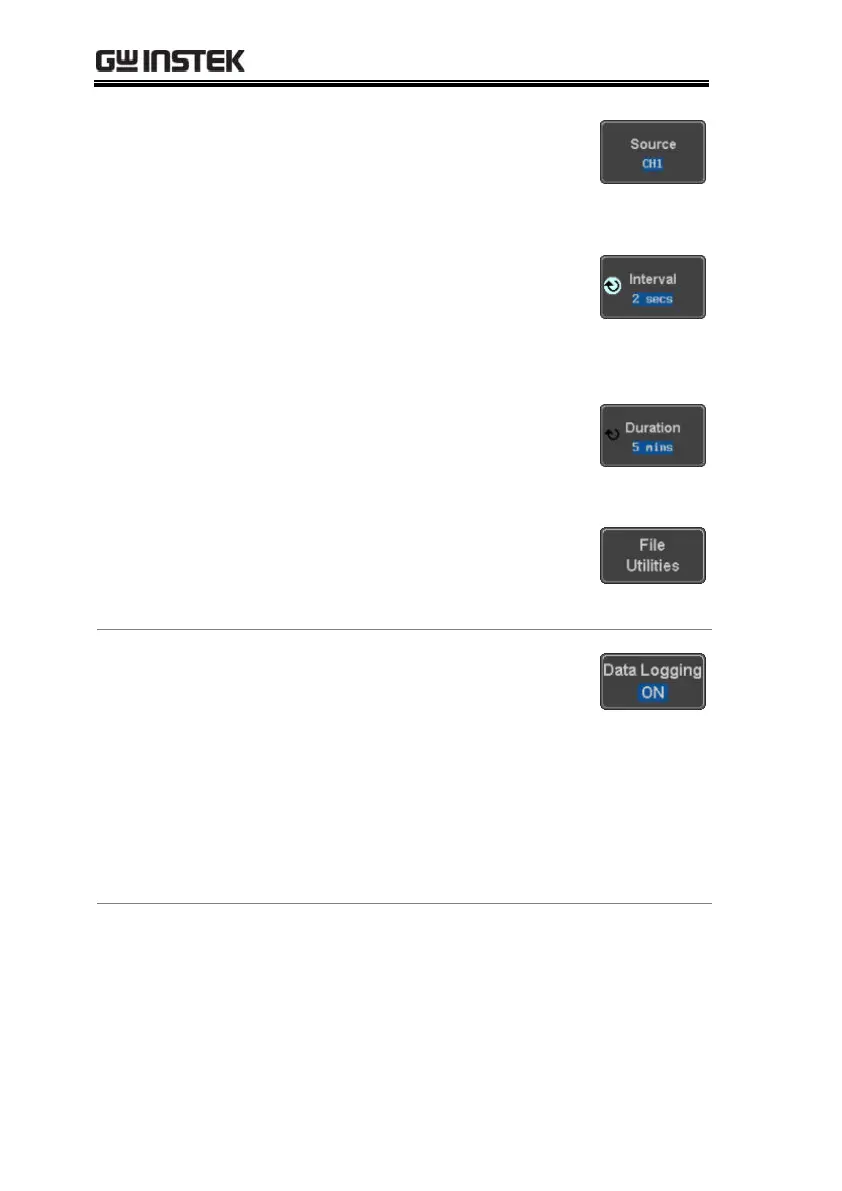

3. Press Source from the side menu
and select a source channel to log if
waveforms are to be logged.
Source
CH1 ~ CH4, All Displayed
4. Press Interval and set the logging
interval time.
Interval
Data: 2secs ~ 2mins
Image: 5secs ~ 2mins
5. Press Duration and select the
logging duration time.
Duration
5mins ~ 100hrs.
6. From the bottom menu, press File
Utilities and set the save file path.
See the File Utilities chapter (page
239) for details.
Page 239
Turn On/Off
7. Press Data Logging from the bottom
menu and toggle Data Logging on.
The data/images will be saved to
the designated file path when Data
Logging is turned on.
The Data Logging app will remain
running in the background even if
other functions are turned on.
Set File Path
8. Press File Utilities to set the file
path.
Page 239
