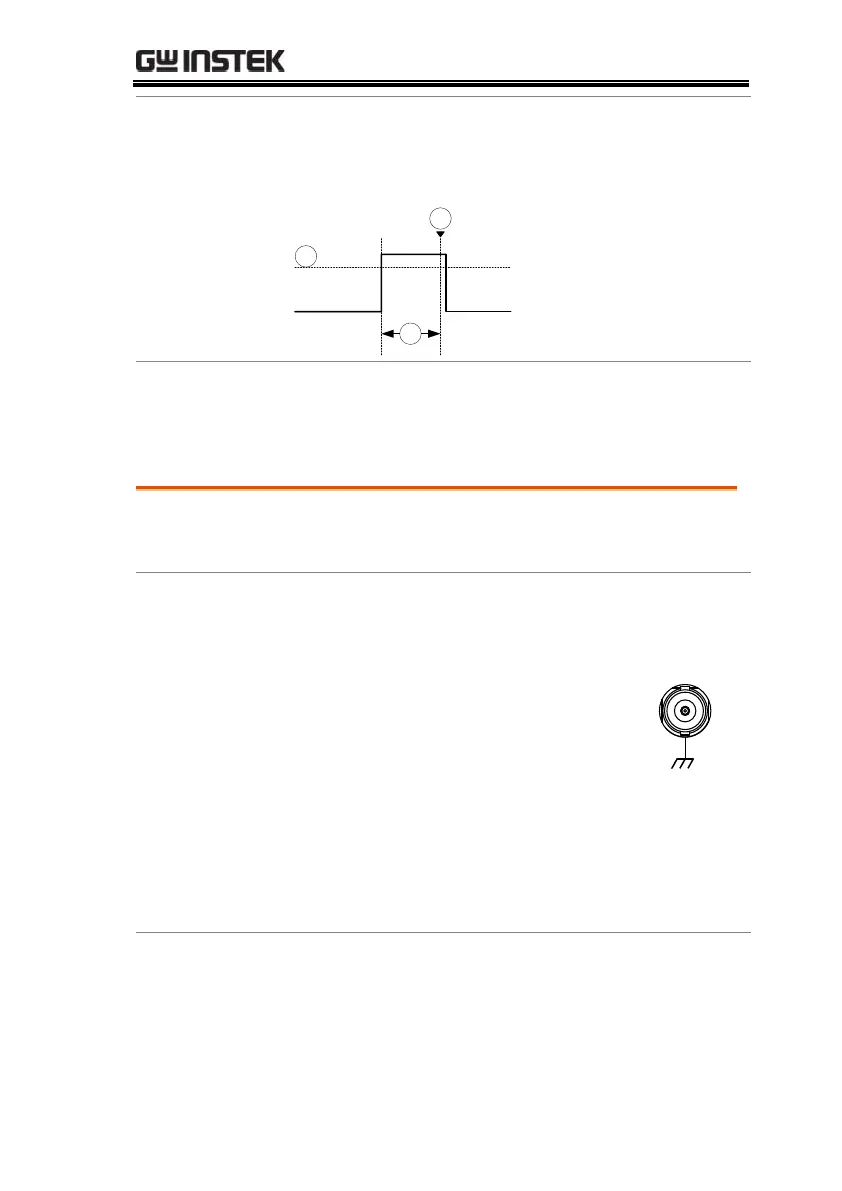

GW Instek GDS-2000E Series User Manual

CONFIGURATION
147
Timeout
Triggers when the signal stays high, low or either
for a designated amount of time. The trigger level
determines when a signal is high or low.
A
B
C
A
Trigger level threshold
B
Timer
C
Triggering point
Bus
Triggers on SPI, UART, I2C, CAN or LIN bus.
Trigger Parameter Overview
All the following parameters are common for all
the trigger types unless stated otherwise.
Trigger Source
CH1 ~ 4
Channel 1 ~ 4 input signals
EXT
External trigger input
signal
EXT TRIG
AC Line
AC mains signal
Alternate
Alternate between channel sources for
the trigger source.
EXT Probe
Probe trigger source. Set the probe as
either current or voltage.
Source Bus
UART
UART bus
I
2
C
Inter-Integrated Circuit
SPI
Serial Peripheral Bus
CAN
Controller Area Network bus
