GDS-2000E Series User Manual
178
Edge, Pulse Width, Pulse Runt, Rise and Fall Times,
FFT Peak*, Bus
*The FFT Peak search event doesn’t have a trigger
equivalent.

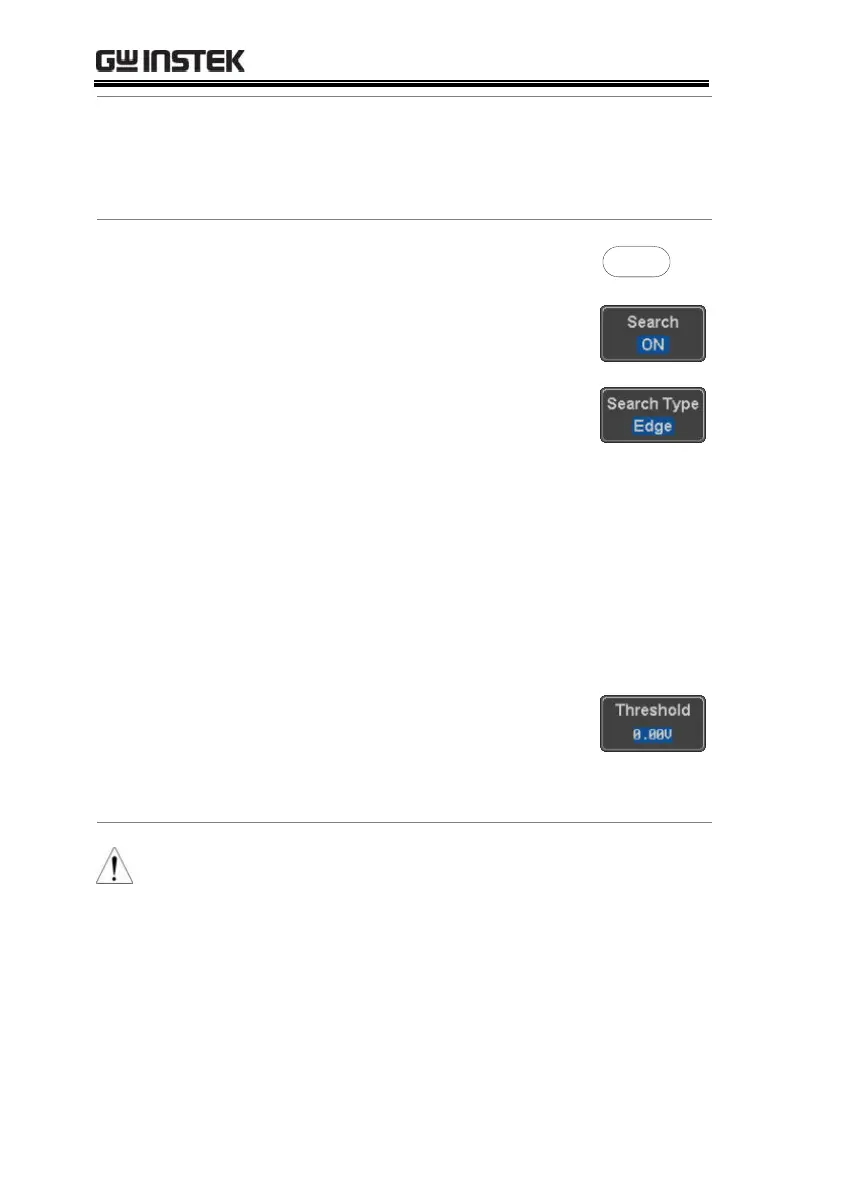

1. Press the Search menu key.
2. Press Search from the bottom menu
and turn the Search function on.
3. Press Search Type from the bottom
menu and select the type of search.
The search events are configured in
the same fashion as the trigger
events.
Please see the trigger configuration settings for
details:
Edge, Pulse Width, Pulse Runt,
Rise/Fall Time, FFT Peak*, Bus
*No trigger equivalent.
4. To set the threshold levels for the
search events (instead of the
trigger level that is used for trigger
events), use the threshold soft-key
from the bottom menu.
The search function can support up to 10,000 events,
however only 1,000 events can be displayed on screen
at once.
