GW Instek GDS-2000E Series - Page 197

APPS
197
Start test
Stop test
Test
stopped
Results

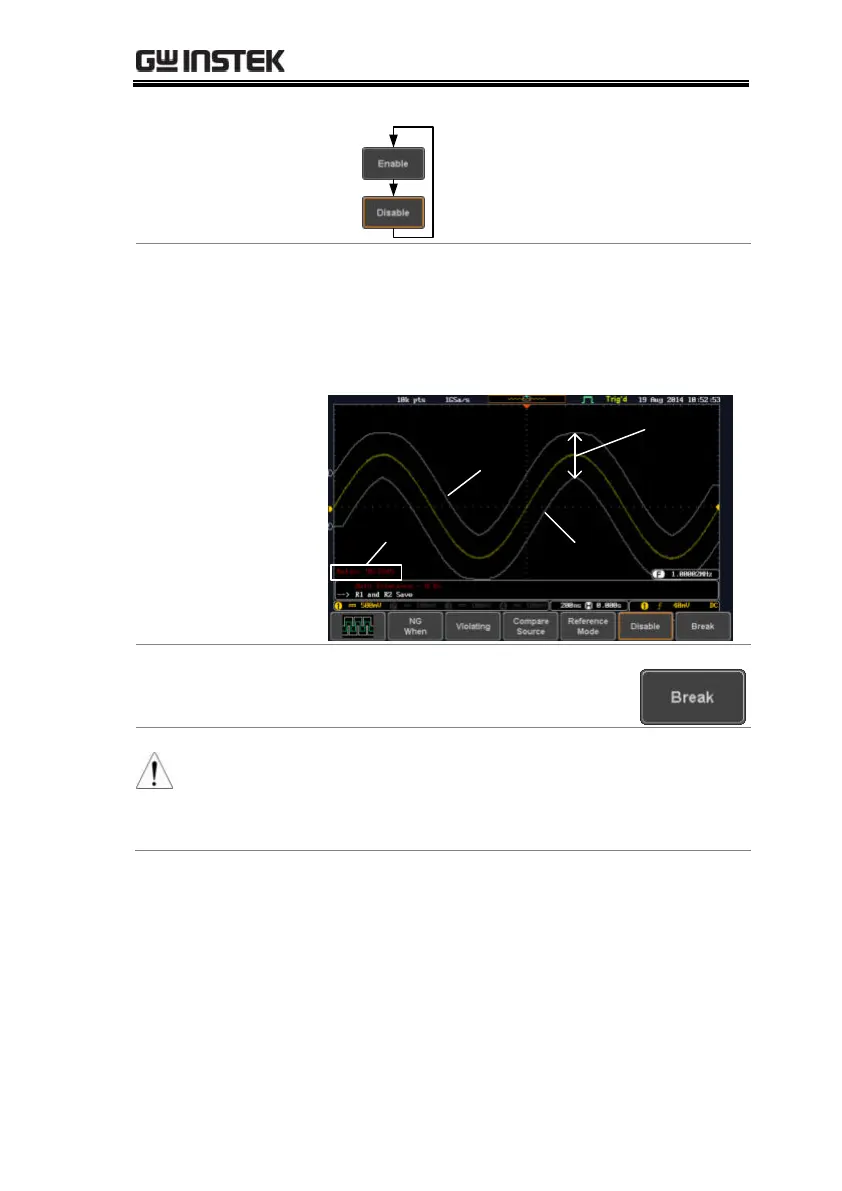

When Go-NoGo is running, the violation/test ratio
is displayed in the bottom left-hand corner. The
first digit represents the number of violations, and
the right hand digit represents the number of tests.
Ratio:
violation / test
Maximum
position
Minimum
position
Tolerance
Exit the
Application
To exit the application, press Break.
Note
After you exit the Go/NoGo app, the boundary
templates that were saved to R1 & R2 reference
waveforms will still be turned on. See page 237 to turn
the reference waveforms off.
