GW Instek GDS-2000E Series User Manual

GDS-2000E Series User Manual
204

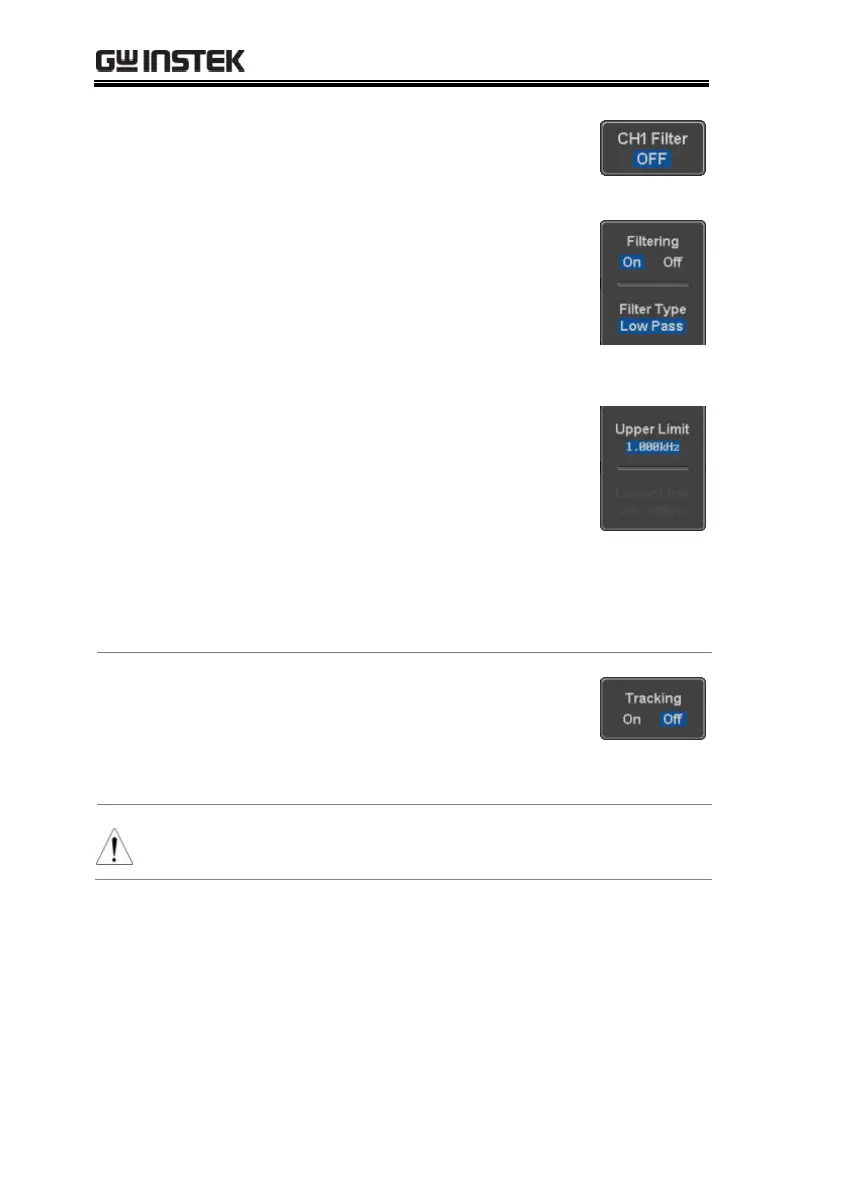

Set Source
1. Select a source channel by pressing
CH1Filter, CH2 Filter, CH3 Filter or
CH4 Filter.
2. From the side menu press Filtering
and turn on.
3. Press Filter Type and select low or
high pass filter.
Type
Low Pass, High Pass
4. If Low Pass was selected, press
Upper Limit to set the low pass
cutoff frequency. Likewise if High
Pass was selected, press Lower
Limit to set the high pass cutoff
frequency. Only one option will be
available at a time.
Upper Limit
1Hz ~ 500MHz
Lower Limit
1Hz ~ 500MHz
Tracking
5. Press Tracking if you want the
settings of the digital filter on each
channel to be the same. When a
setting is changed on one channel,
it is reflected on the other channels.
Note
The digital filter settings will still apply to the relevant
input signals after leaving the app, unless turned off.
