GW Instek GDS-2000E Series User Manual

GDS-2000E Series User Manual
26

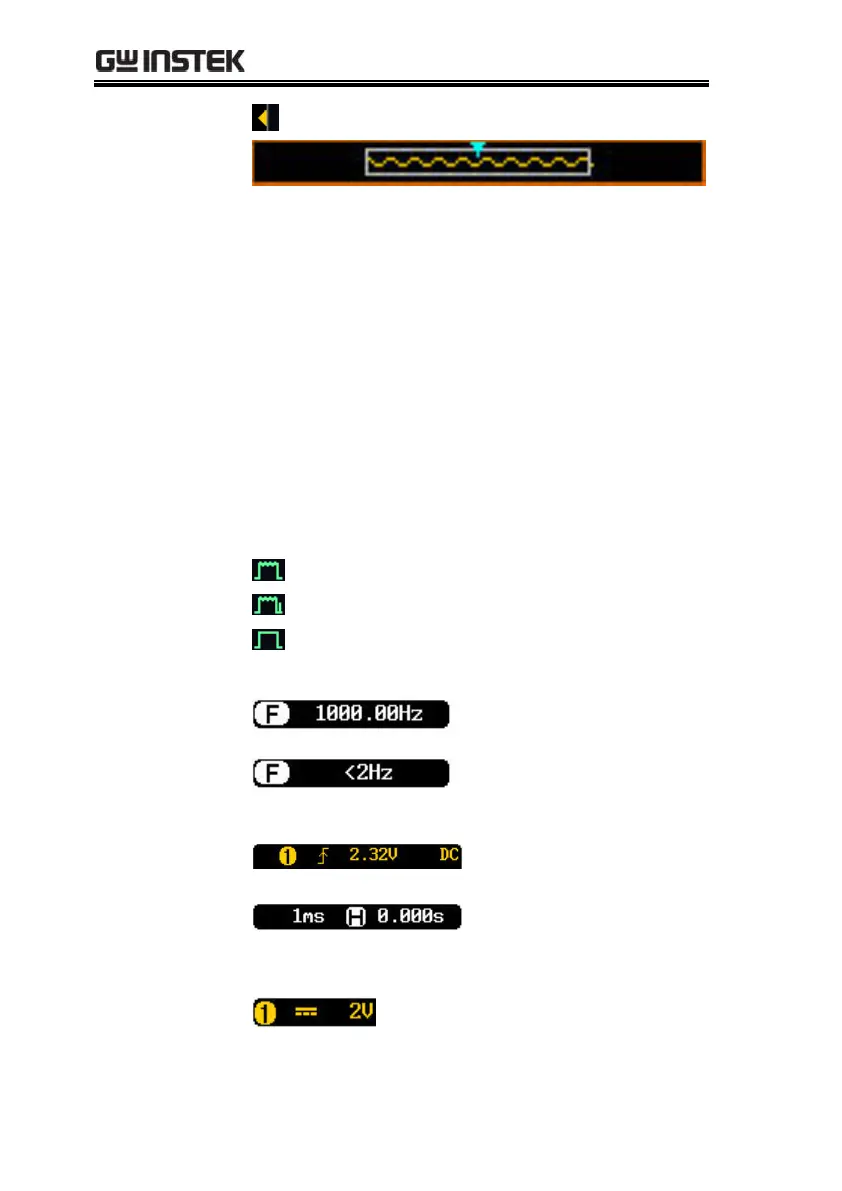

Trigger Level
Shows the trigger level on the graticule.
Memory Bar
The ratio and the position of the displayed
waveform compared to the internal memory (page
105).
Trigger Status
Trig’d
Triggered.
PrTrig
Pre-trigger.
Trig?
Not triggered, display not updated.
Stop
Trigger stopped. Also appears in
Run/Stop (page 42).
Roll
Roll mode.
Auto
Auto trigger mode.
For trigger details, see page 145.
Acquisition Mode
Normal mode
Peak detect mode
Average mode
For acquisition details, see page 81.
Signal Frequency
Shows the trigger source
frequency.
Indicates the frequency is
less than 2Hz (lower
frequency limit).
Trigger
Configuration
Trigger source, slope,
voltage, coupling.
Horizontal Status
Horizontal scale,
horizontal position.
For trigger details, see page 145.
Channel Status
Channel 1, DC coupling,
2V/Div.
For channel details, see page 114.
