GW Instek GDS-2000E Series User Manual

MEASUREMENT
51

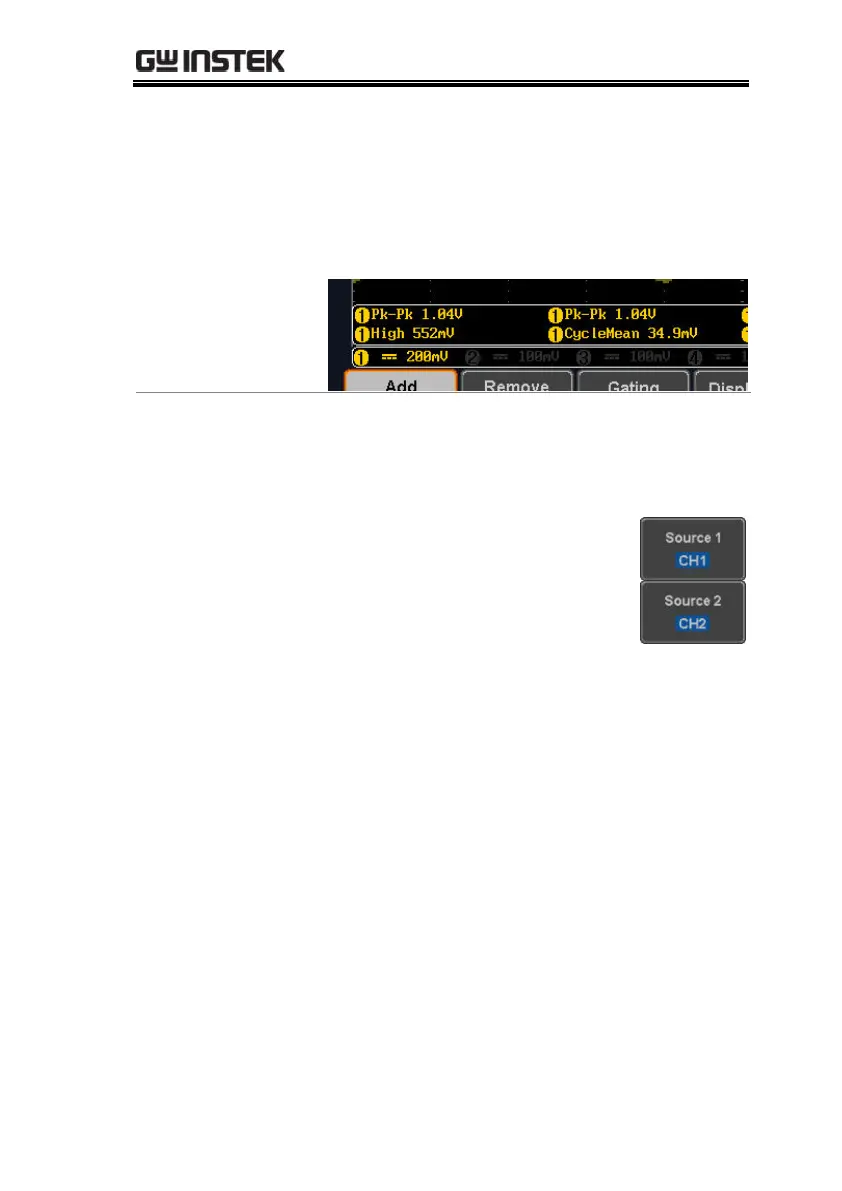

4. All of the chosen automatic measurements will
be displayed in a window on the bottom of the
screen. The channel number and channel color
indicate the measurement source.
For the analog inputs: yellow = CH1,
blue = CH2, pink = CH3, green = CH4.
Choose a Source
The channel source for measurement items can be
set either before or when selecting a measurement
item.
1. To set the source, press either the
Source1 or Source2 key from the
side menu and choose the source.
Source 2 is only applicable for
delay measurements.
Range
CH1~ CH4, Math
