GDS-2000E Series User Manual
62

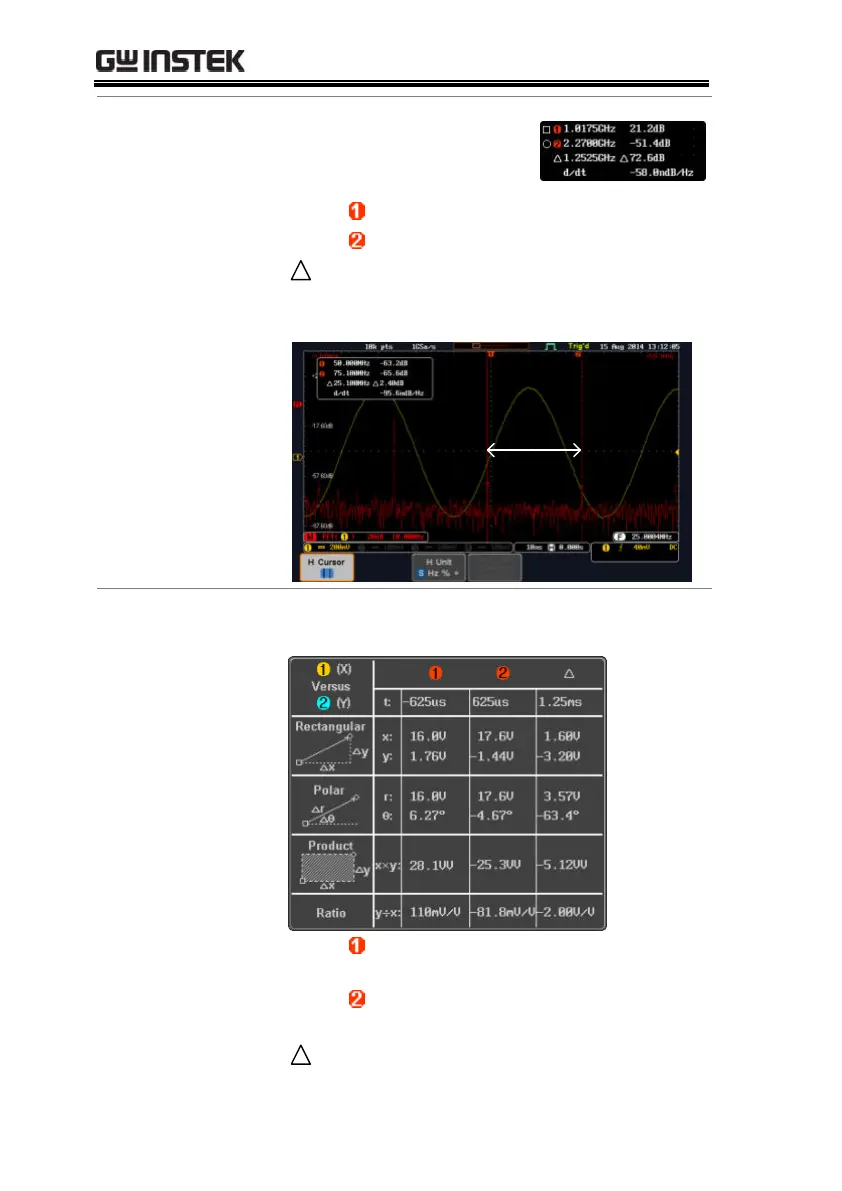

FFT
FFT cursors can use different
units. For FFT details, see page
70.
Cursor
Hor. position, dB/Voltage
Cursor
Hor. Position, dB/Voltage
Delta (difference between cursors)
dV/dt or d/dt
Example
Horizontal
cursors
XY Mode
XY mode cursors measure a number of X by Y
measurements.
Cursor
Time, rectangular, polar co-
ordinates, product, ratio.
Cursor
Time, rectangular, polar co-
ordinates, product, ratio.
Delta (difference between cursors)
