CONFIGURATION
91

Alternatively, the Run/Stop key can
be pressed.
Run/Stop

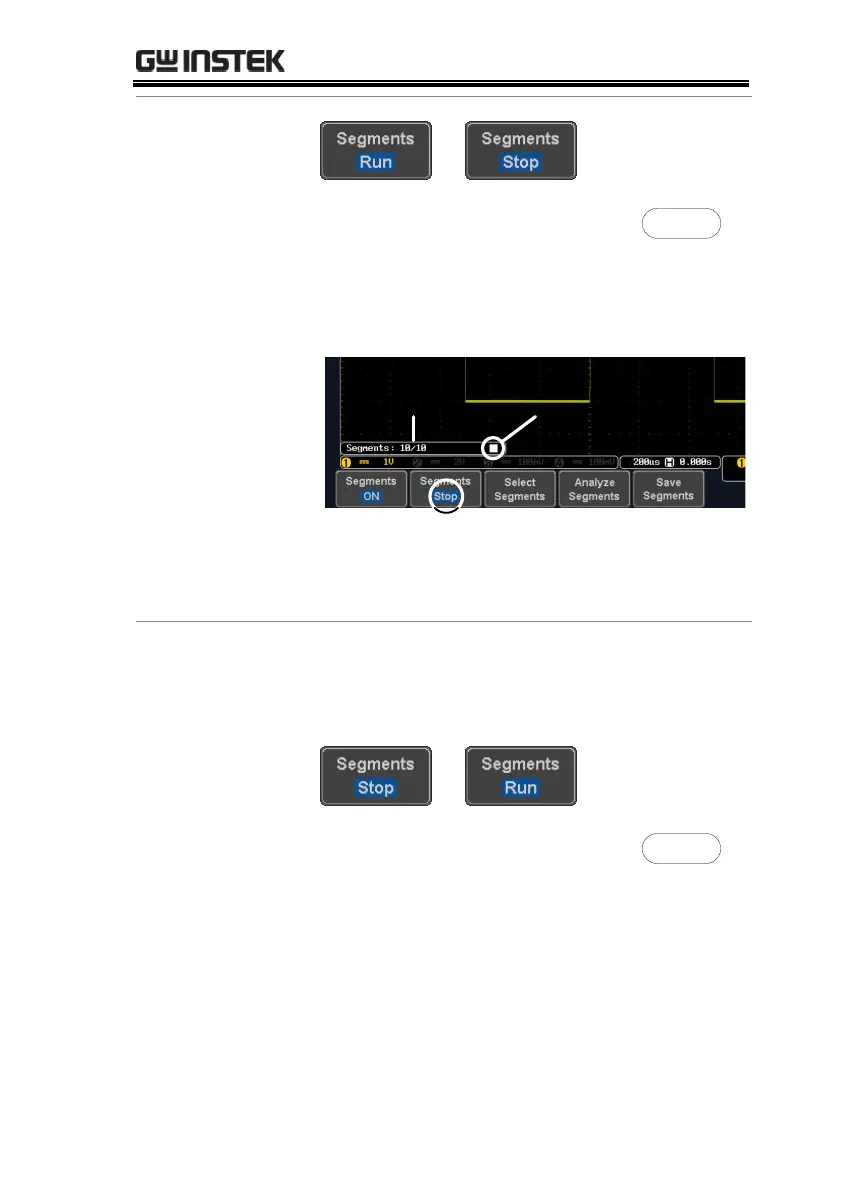

5. The Stop Indicator will be shown when in the
Stop mode.
Stop Indicator
Progress Indicator
Segment (Stop )icon
The scope is now ready to navigate or analyze the
acquired segments.
Rerun Segmented
Acquisition
1. To rerun the segments, press the Segments Stop
key to toggle the mode back to the Segments
Run mode.

Alternatively, press the Run/Stop
key again.
Run/Stop
2. Repeat steps 3 and 4 in the section above when
the segmented acquisition has completed.
