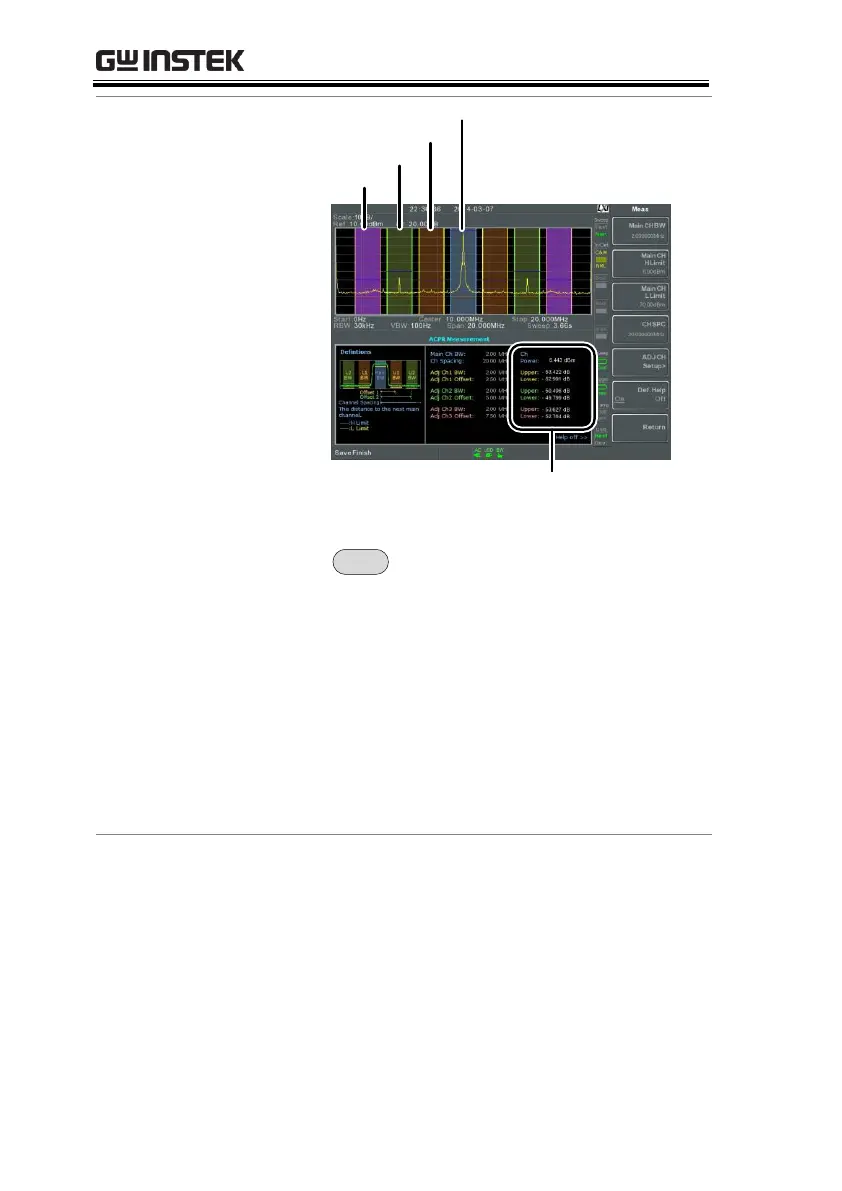

ADJCH2
Channel power
results
ADJCH3
ADJCH1
Main CH
3. Press
Measure
> Channel Analysis[F1]>ACPR
Setup[F1]> and set the following:
Main CHBW[F1]
Set the bandwidth of the
main channel.
Main CH H Limit[F2]
Set the low limit for the
main channel.
Main CH Limit[F3]
Set the high limit for the
main channel
CH SPC[F4]
Specify the channel
spacing
Operation:
Setting up the
adjacent
channel(s)
1. Press ADJCH Setup[F5] to setup the adjacent
channels:
Select AdjCh[F1]
Choose an adjacent
channel number: 1, 2, 3
[F2]
Toggle the selected
channel on/off.
ADJCHBW[F3]
Choose the bandwidth of
the selected channel.
