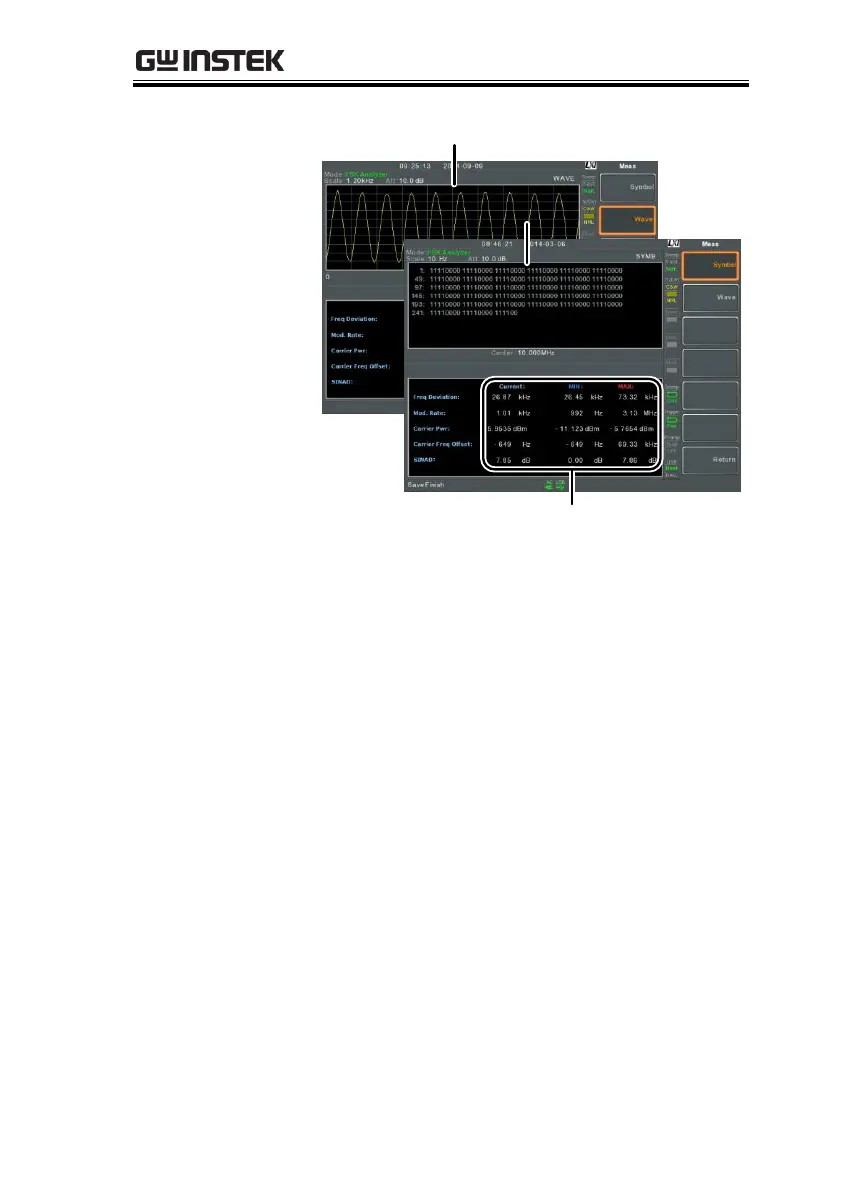

FSK demodulation
measurements
Wave view
Symbol view
4. Press Symbol Rate[F2] and set the Symbol rate.
 The symbol rate determines the number of symbols
for a unit of time.
Frequency
Deviation
5. Press Freq.Deviation[F3] to set the frequency
deviation band for the FSK signal:
Freq.Deviation[F1]
10kHz, 30kHz, 100kHz,
300kHz, 1MHz.
Display View
6. To toggle the top half of the screen between the
Symbol view or Wave view, press
View[F4]>Symbol[F1] or View[F4]>Wave[F2].
7. If the View is set to Wave, press Time Axis [F5]
to set horizontal axis parameters:
Ref. Value[F1]
Sets the starting time on
the time axis.
