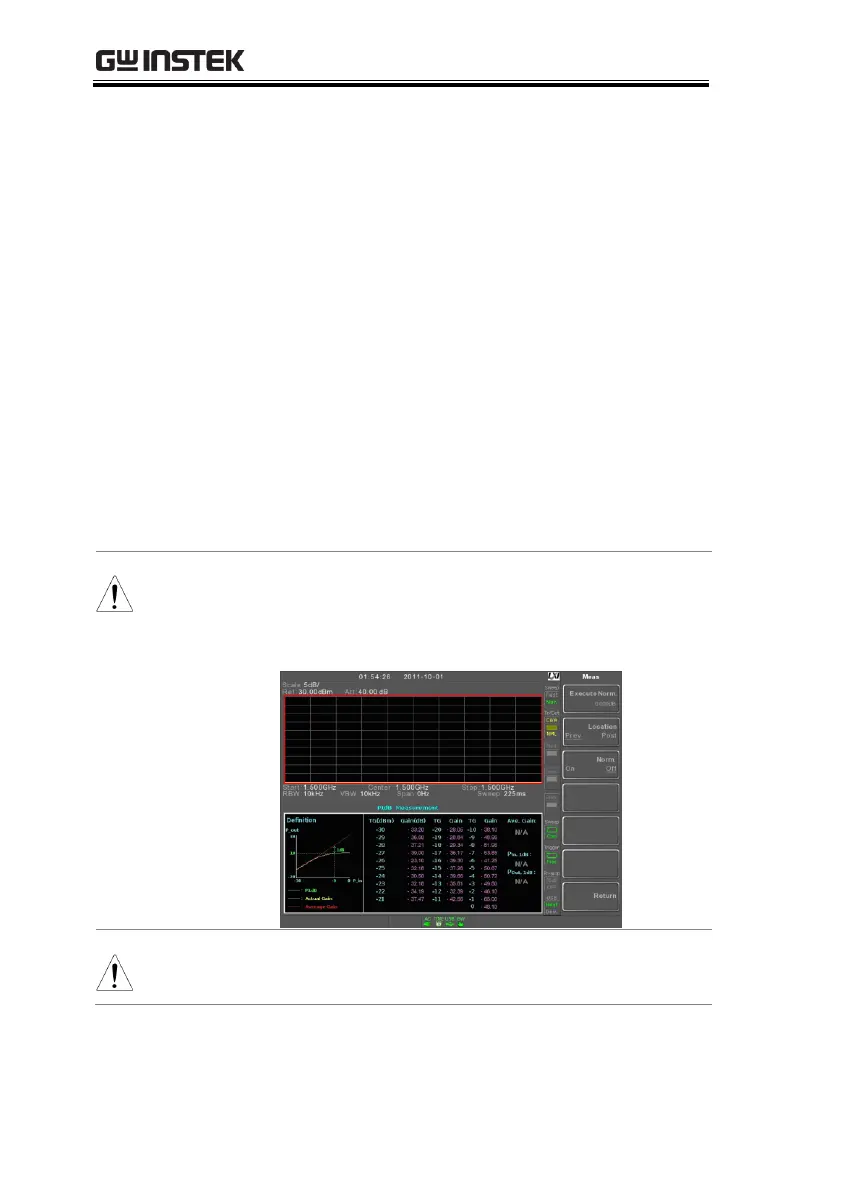

GSP-9300 User Manual
198
Gain:
-99.00dB ~ 99.00 dB
6. To help smooth the actual frequency response
and measure the P1dB compression point more
accurately, press Average[F4] to set the average
number. This is especially useful if Start is set
around -50dB.
Average number:
1 ~ 200
7. Press Start[F5] to set the “starting” output
power for the P1dB measurement.
Start:
-50dB ~ -5dB
8. Press Reset[F6] to restart the P1dB measurement
function.
Warning
If the equivalent gain exceeds 30dBm the gridicule
area will be bordered in red to indicate that the
input exceeds specified levels.
Note
The maximum power the DC output can provide is
7volts/500mA.
