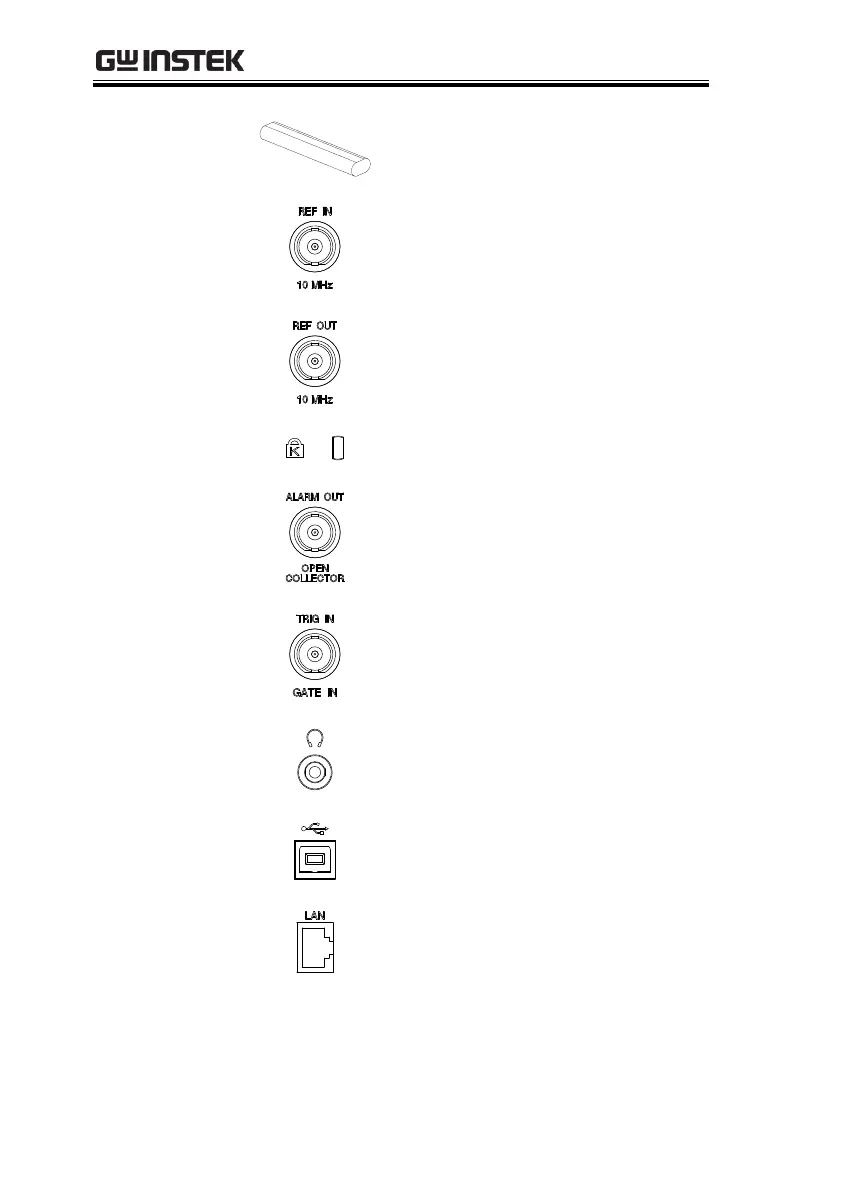

Battery pack
Voltage: 10.8V
Capacity: 5200mAH
REF IN
BNC female reference input.
REF OUT
BNC female reference output:
10MHz, 50Ω impedance
Security Lock
ALARM OUT
BNC female open collector Alarm
output.
TRIG IN/GATE IN
BNC female 3.3V CMOS trigger
input/gated sweep input.
Phone
3.5mm stereo headphone jack
(wired for mono operation)
USB B
USB B Device port. USB 1.1/2.0
LAN
RJ-45 10Base-T/100Base-Tx
