GW Instek GSP-9300 User Manual

GETTING STARTED
21

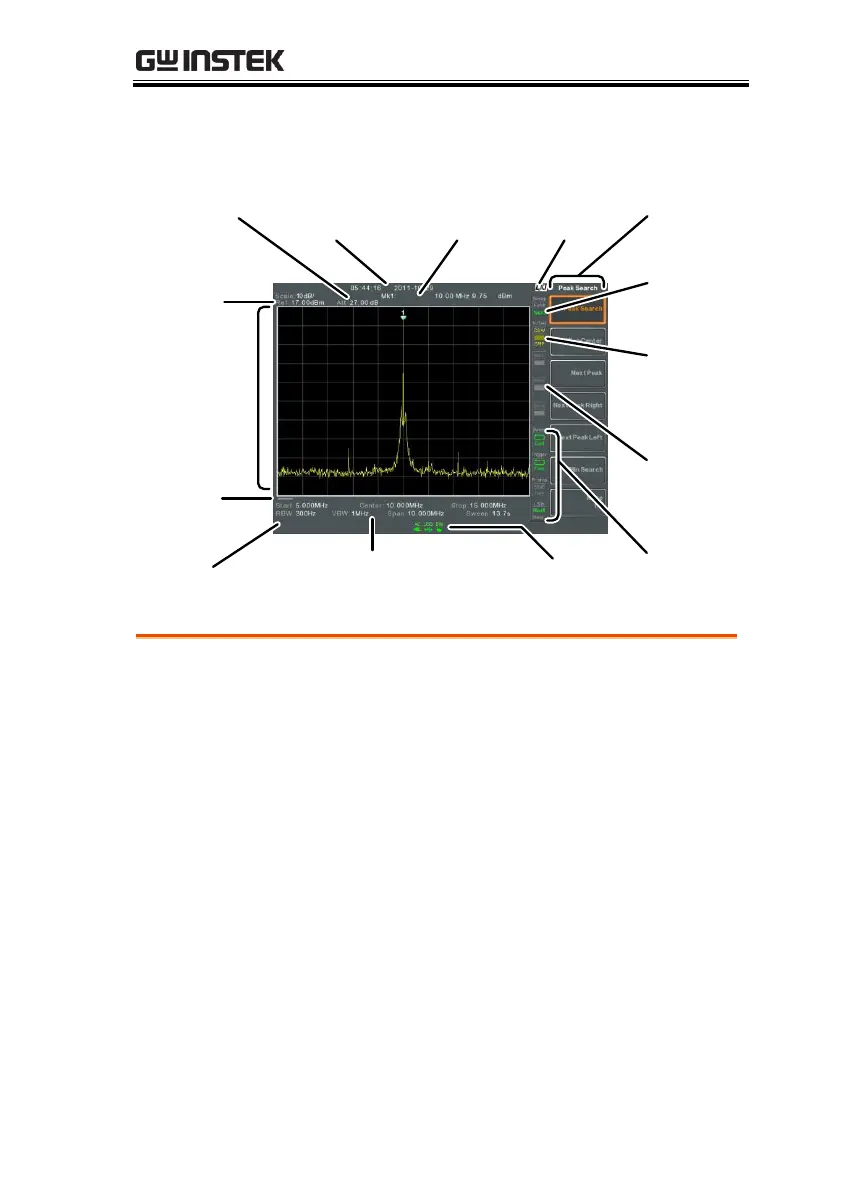

Display
Scale and
Reference
level
Attenuation
level
Date
and time
Function
menu
Marker
information
Trace/
Detection
settings
Unassigned
setting
icons
Sweep,
Trigger,
Pre-amp
and USB
settings
Frequency/Bandwidth
settings
Status icons
Sweep
settings
Traces and
waveforms
LXI icon
Entry /
Message
area
Sweep
progress
bar
Scale
Displays the vertical scale of the vertical grid. For
details, see page 50.
Reference level
Displays the reference level. For details, see page
48.
Attenuation
Displays the vertical scale (attenuation) of the
input signal. For details, see page 49.
Date/Time
Displays the date and time. See page 118 for
details.
Marker
information
Displays marker information. For details see page
94.
