GSP-9300 User Manual
22
This icon indicates the status of the LXI connection.
For details, see page 267.
Soft menu keys associated with the F1 to F7
function keys to the right of the display.

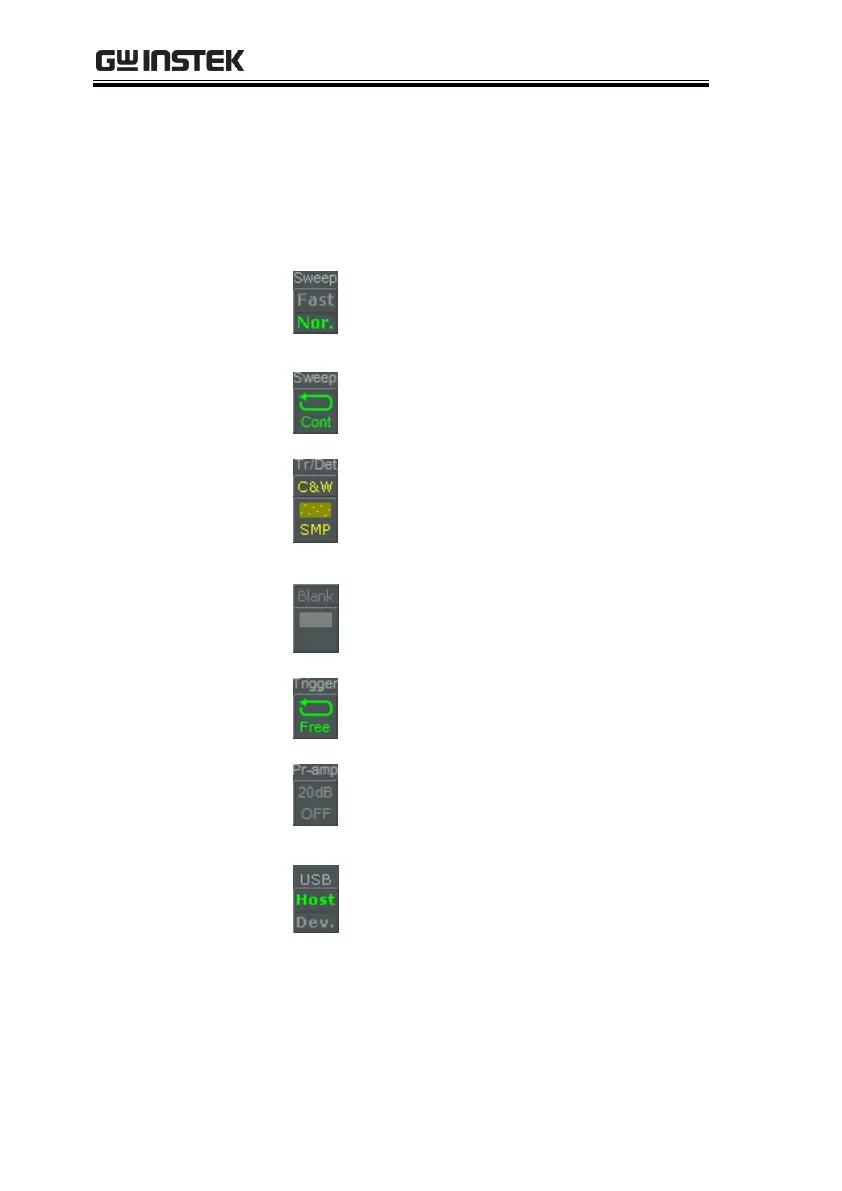

This icon displays the sweep mode,
as set by the Sweep Mode key. See
page 79.
Sweep icon that shows the sweep
status. See page 72 for details.
Trace and
detection settings
Trace icon that shows the trace type
and the detection mode used for
each trace. See from page 81 for
details.
Unassigned setting icons.
Trigger icon that shows the trigger
status. See page 89 details.
Pre-amplifier icon that shows the
Pre-amplifier status. See from page
62 for details.
Displays the status of the USB A
port.
Displays the interface status, power source status
and alarm status, etc. See the Status Icon Overview
on page 24 for a list of the status icons.
To Next Page
