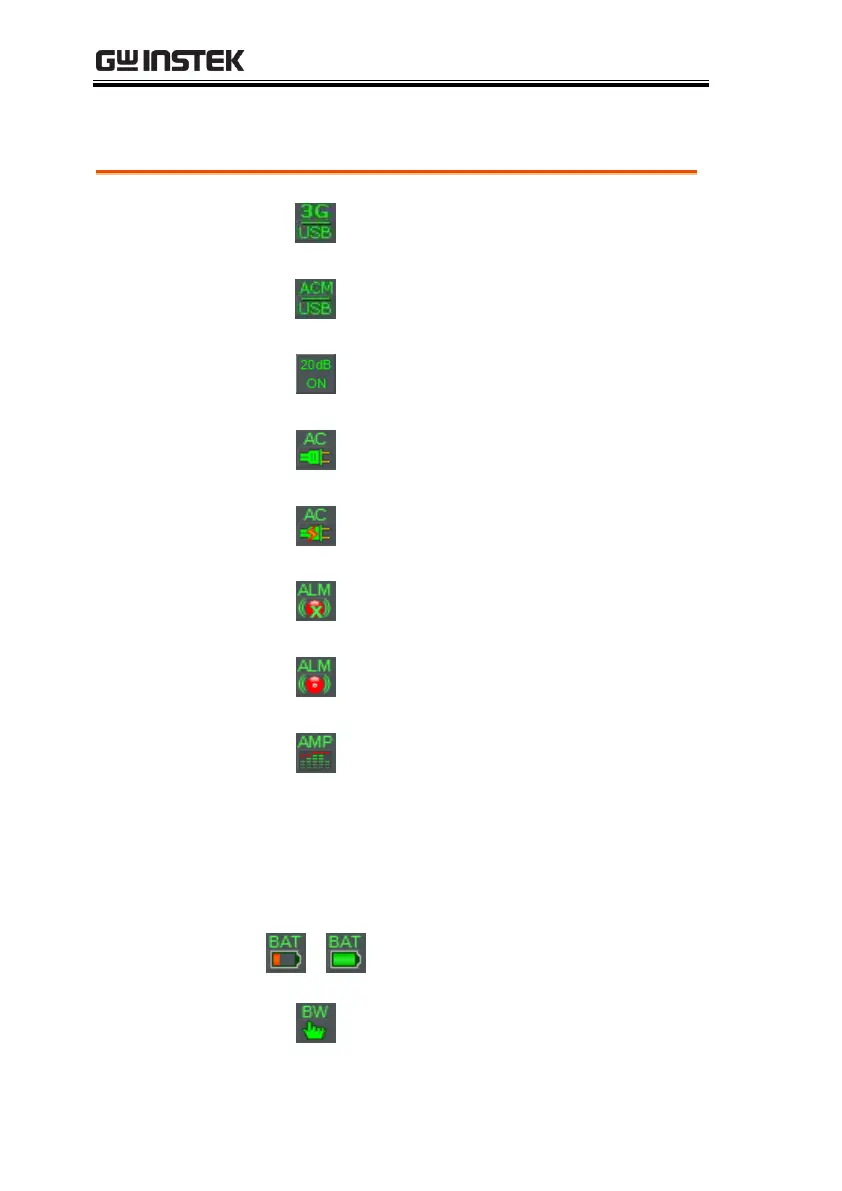

Status Icon Overview
Indicates that the 3G adapter is
installed and turned on.
Indicates that the demo kit is
installed and turned on.
Indicates that the pre amplifier is
on.
Shown when running on AC
power.
Shown when the AC power is
charging the battery.
Alarm buzzer output is currently
off.
Alarm buzzer output is currently
on.
Indicates that the amplitude-shift is
active. This icon appears when
amplitude-related functions are
used:
Reference level offset
Amplitude Correction
Input Z = 75Ω and Input Z cal >0
Indicates the battery charge.
Indicates that the RBW or VBW
settings are in manual mode.
