Data log of power measurements

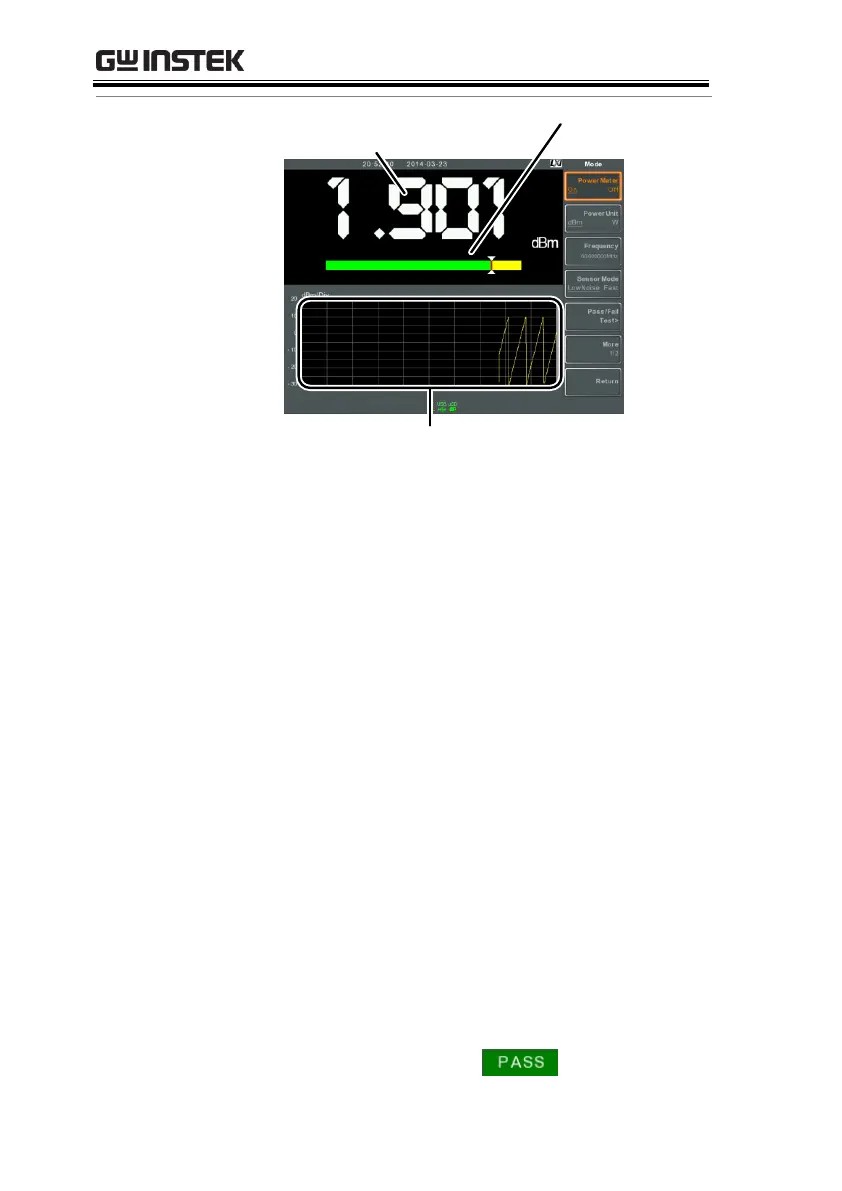

Power meter measurement
Power meter bar
3. Press Power Unit[F2] and choose the unit:
Unit
dBm, W
4. Press Frequency[F3] choose measurement
frequency (use the number pad):
Frequency
1MHz~6200MHz
Resolution:
1MHz
5. Press Sensor Mode[F4] to choose measurement
speed (and thus accuracy) of the power meter:
Low Noise:
100ms/sample, typical
Fast:
30ms/sample, typical
6. To create pass fail tests, press Pass/Fail Test[F5]
and set the following parameters:
High Limit[F1] :
-30dBm~20dBm
Low Limit[F2] :
-30dBm~20dBm
Pass/Fail Test[F3]:
On, Off
Pass Icon:
