104

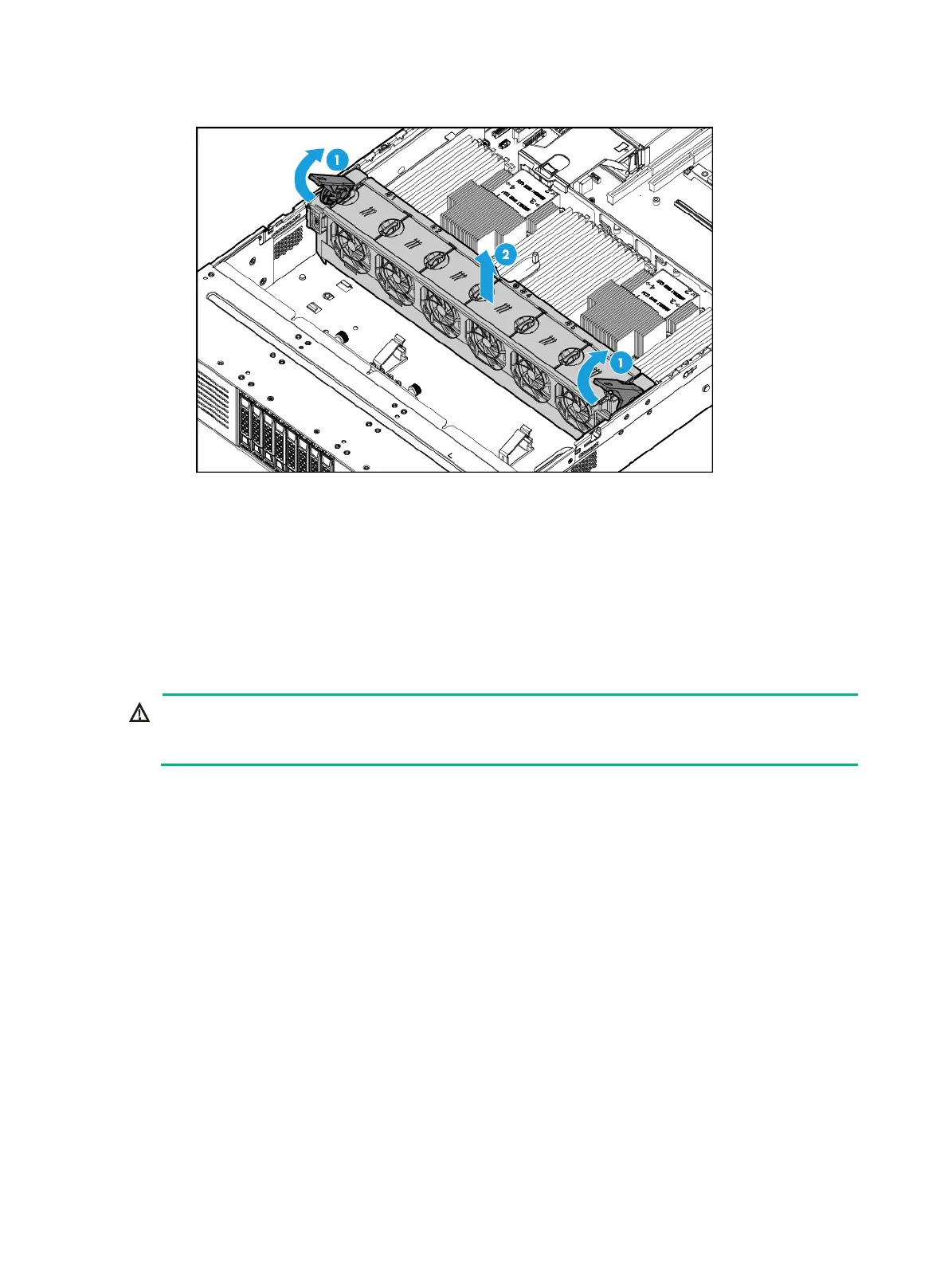

Figure 138 Removing a fan cage
6. Install a new fan cage. For more information, see "Installing fans."
7. Install the chassis air baffle. For more information, see "Installing air baffles."
8. Install the access panel. For more information, see "Installing the access panel."
9. Rack-mount the server. For more information, see "Rack-mounting the server."
10. Powe
r on the server. For more information, see "Powering on the server."
Replacing a DIMM
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
Procedure
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack. For more information, see "Removing the server from a rack."
3. Remove the
access panel. For more information, see "Removing the access panel."
4. Remove the
chassis air baffle. For more information, see "Removing air baffles."
5. Open the
DIMM slot latches and pull the DIMM out of the slot, as shown in Figure 139.
