133
Connect the power cord of a GPU module as shown in Figure 177.

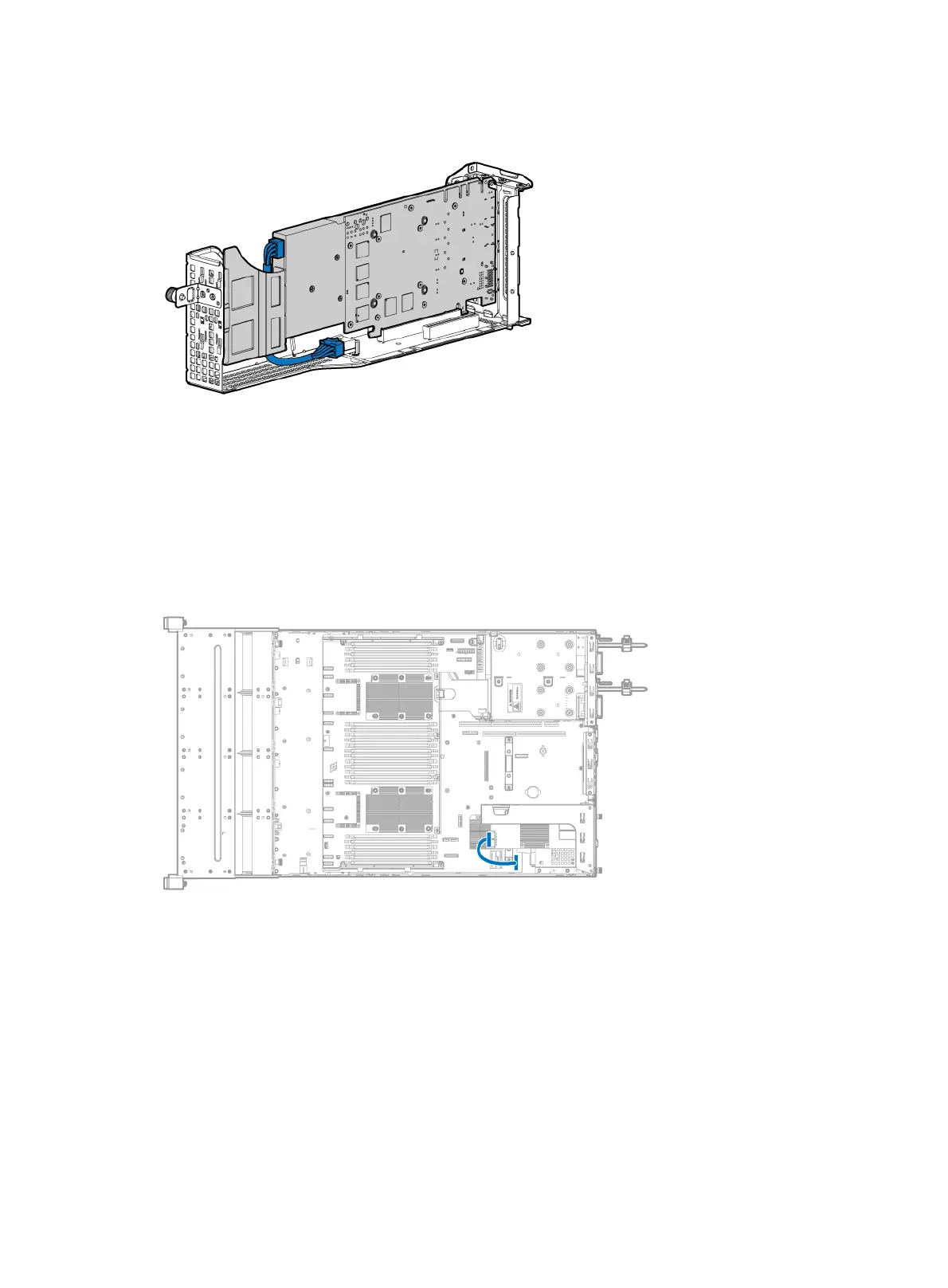

Figure 177 Connecting the power cord of a GPU module
Connecting the NCSI transit cable for a PCIe
Ethernet adapter
The cabling method is the same for standard storage controllers in any PCIe slots. Figure 178 uses
slot 1 to show the cabling method.
Figure 178 Connecting the NCSI transit cable for a PCIe Ethernet adapter
Connecting the SATA M.2 SSD cable
The SATA M.2 SSD cabling method depends on the number of SATA M.2 SSDs to be installed.
• If you are installing only one SATA M.2 SSD, connect the cable as shown in Figure 179.
• If you are inst
alling two SATA M.2 SSDs, connect the cable as shown in Figure 180.
