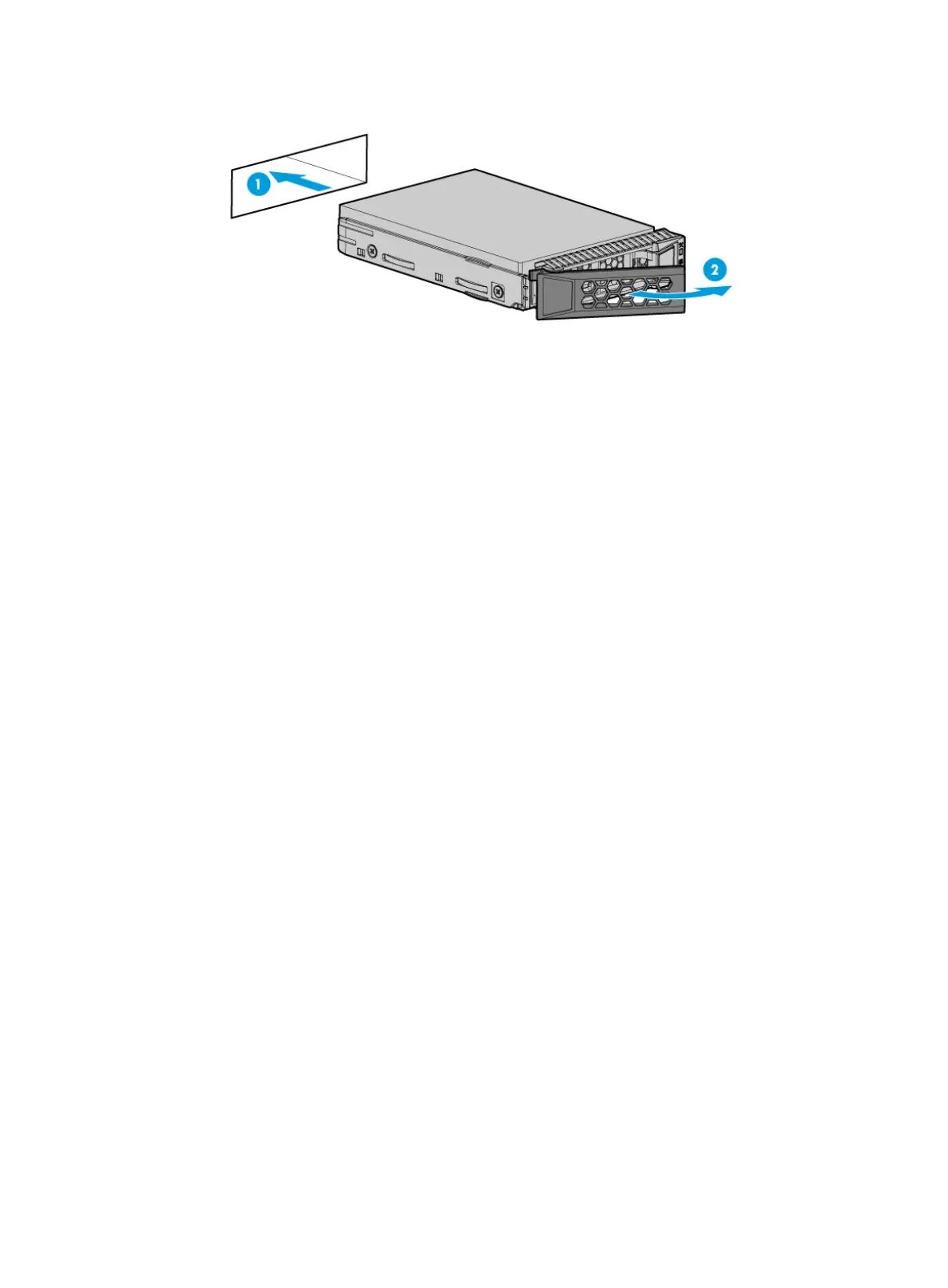

Figure 60 Installing a drive
4. (Optional.) Install the removed security bezel. For more information, see "Installing the security
bezel."
Verifying the installation
Use the following methods to verify that the drive is installed correctly:
• Verify the drive properties (including capacity) by using one of the following methods:
{ Log in to HDM. For more information, see HDM online help.
{ Access the UIS manager and click the Storage tab. For more information, see the storage
controller user guide for the server.
• Observe the drive LEDs to verify that the drive is operating correctly. For more information, see
"Drive LEDs."
Installing power supplies
Guidelines
• The power supplies are hot swappable.
• Make sure the installed power supplies are the same model. HDM will perform power supply
consistency check and generate an alarm if the power supply models are different.
• To avoid hardware damage, always use H3C-approved power supplies.
• The power supplies have an overtemperature protection mechanism. A power supply stops
working when an overtemperature occurs and automatically recovers when the
overtemperature condition is removed.
Procedure
1. As shown in Figure 61, remove the power supply blank from the target power supply slot.
