53

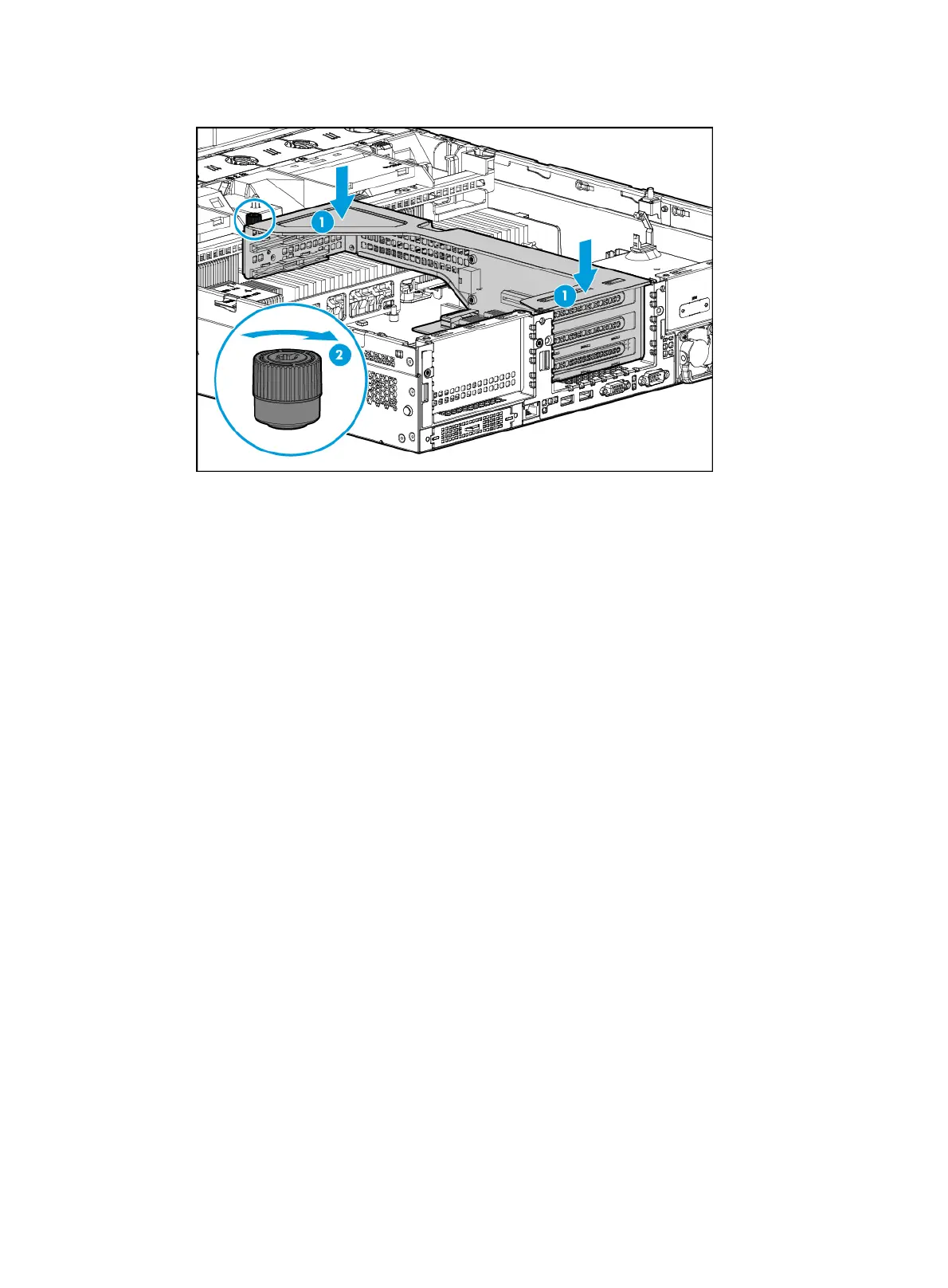

Figure 70 Installing the riser card
7. Connect PCIe module cables, if any.
8. Install the access panel. For more information, see "Installing the access panel."
9. Rack-mount the server. For more information, see "Rack-mounting the server."
10. Con
nect the power cord. For more information, see "Connecting the power cord."
11. Powe
r on the server. For more information, see "Powering on the server."
Installing a UIS-RC-FHHL-2U-G3-F riser card and a PCIe
module
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack. For more information, see "Removing the server from a rack."
3. Remove the
access panel. For more information, see "Removing the access panel."
4. Lift the riser
card blank to remove it from PCIe riser connector 3, as shown in Figure 71.
