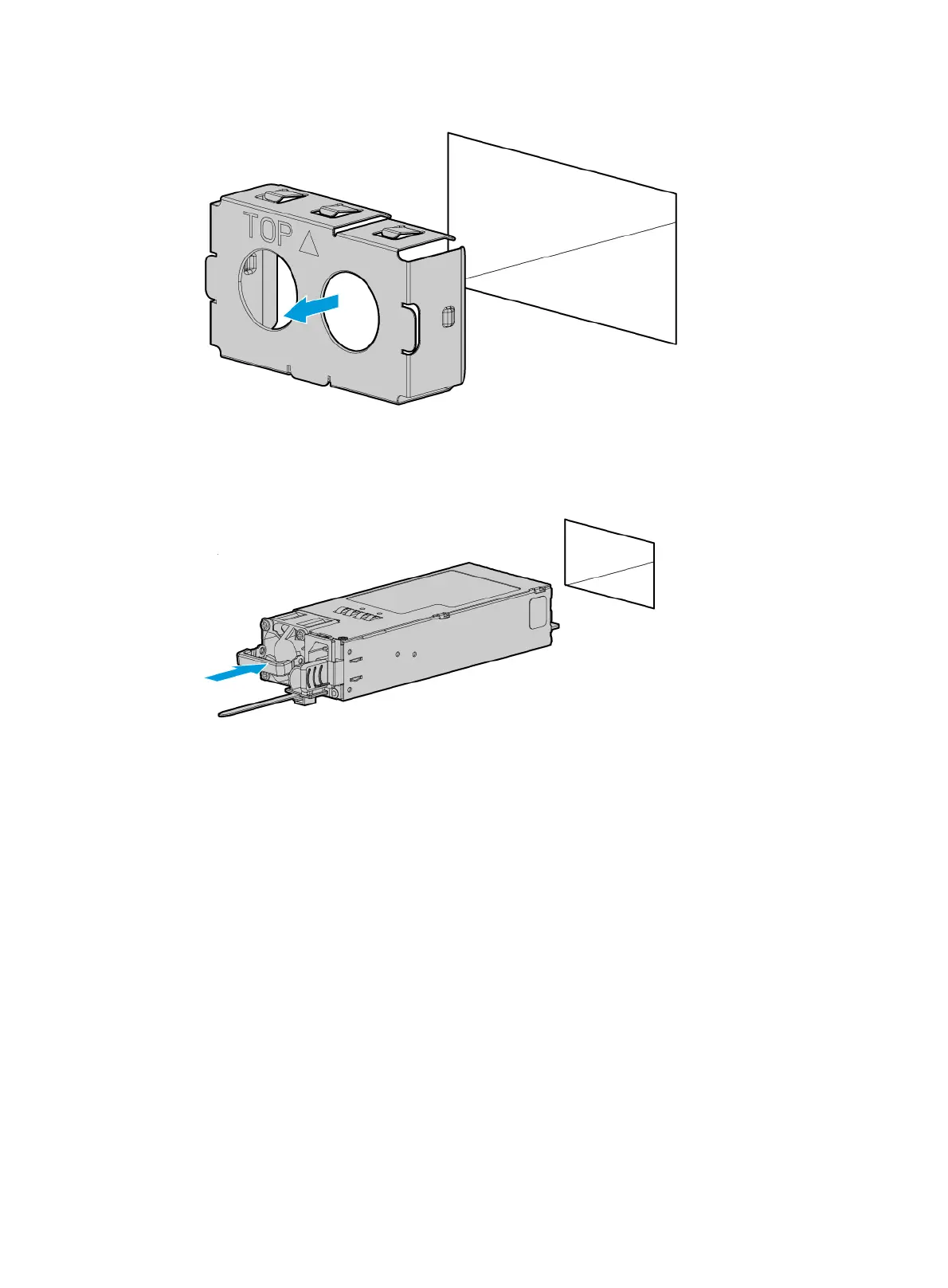

Figure 61 Removing the power supply blank
2. Align the power supply with the slot, making sure its fan is on the left.
3. Push the power supply into the slot until it snaps into place.
Figure 62 Installing a power supply
4. Connect the power cord. For more information, see "Connecting the power cord."
Verifying the installation
Use one of the following methods to verify that the power supply is installed correctly:
• Observe the power supply LED to verify that the power supply is operating correctly. For more
information about the power supply LED, see LEDs in "Rear panel."
• Log in to HDM to verify that the power supply is operating correctly. For more information, see
HDM online help.
Installing riser cards and PCIe modules
The server provides three PCIe riser connectors on the system board to connect riser cards, which
hold PCIe modules. For more information about the connector locations, see "System board
components."
Guidelines
• You can install a PCIe module in a PCIe slot for a larger-sized PCIe module. For example, an
LP PCIe module can be installed in a slot for an FHFL PCIe module.
