105

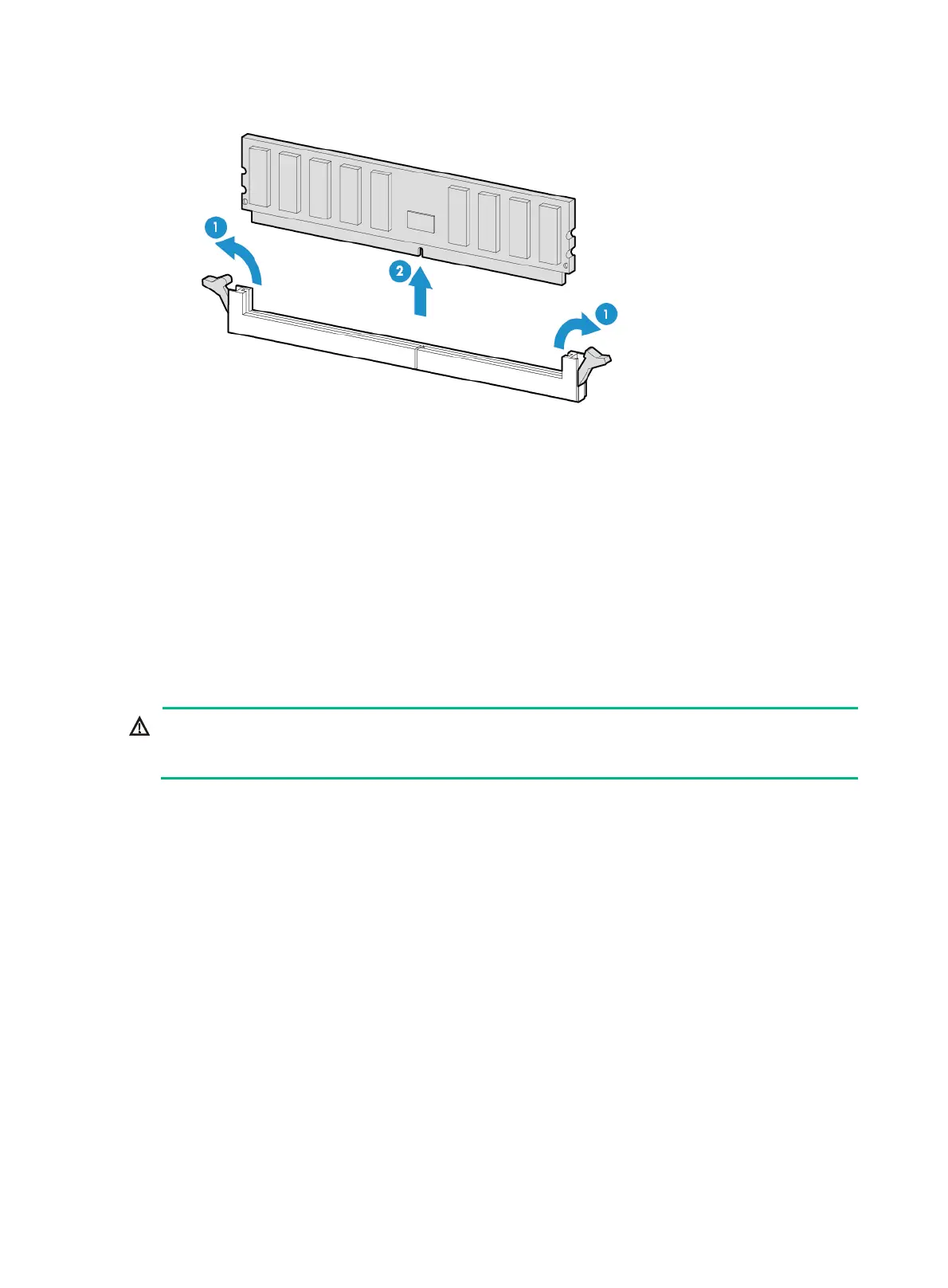

Figure 139 Removing a DIMM
6. Install a new DIMM. For more information, see "Installing DIMMs."
7. Install the chassis air baffle. For more information, see "Installing air baffles."
8. Install the access panel. For more information, see "Installing the access panel."
9. Rack-mount the server. For more information, see "Rack-mounting the server."
10. Con
nect the power cord. For more information, see "Connecting the power cord."
11. Powe
r on the server. For more information, see "Powering on the server."
Verifying the replacement
For information about the verification methods, see "Installing DIMMs."
Replacing a processor
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
Guidelines
• To avoid damage to a processor or the system board, only H3C authorized or professional
server engineers can install, replace, or remove a processor.
• Make sure the processors on the server are the same model.
• The pins in the processor sockets are very fragile and prone to damage. Install a protective
cover if a processor socket is empty.
• For the server to operate correctly, make sure processor 1 is in position. For more information
about processor locations, see "System board components."
Prerequisites
To avoid ESD damage, wear an ESD wrist strap before performing this task, and make sure the wrist
strap is reliably grounded.
