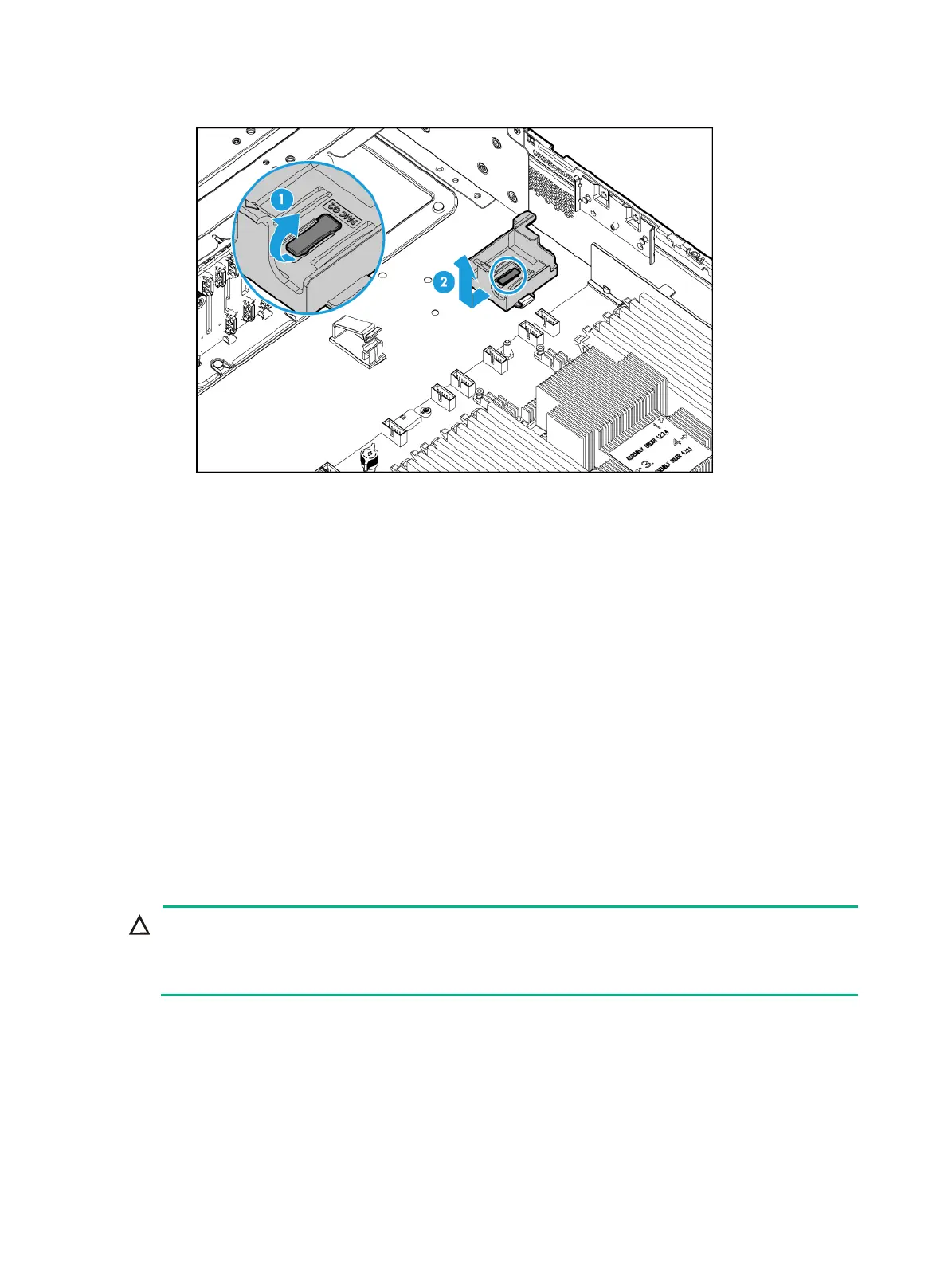

Figure 131 Removing the supercapacitor holder
11. Install a new power fail safeguard module. For more information, see "Installing a Mezzanine
storage controller and a power fail safeguard module."
12. Reconnect the removed cables to the front drives backplane. For more information, see
"UIS-Cell 3010 G3 server."
13. Install the removed fan cage. For more information, see "Installing fans."
14. Install the removed air baffles. For more information, see "Installing air baffles."
15. Install the access panel. For more information, see "Installing the access panel."
16. Rack-mount the server. For more information, see "Rack-mounting the server."
17. Con
nect the power cord. For more information, see "Connecting the power cord."
18. Powe
r on the server. For more information, see "Powering on the server."
Verifying the replacement
Log in to HDM to verify that the flash card and the supercapacitor are in a correct state. For more
information, see HDM online help.
Replacing the power fail safeguard module for a standard
storage controller
CAUTION:
To avoid server errors, do not replace the power fail safeguard module when a drive is performing
RAID migration or rebuilding. The Fault/UID LED is off and the Present/Active LED is flashing green
on a drive if the drive is performing migration or rebuilding.
Procedure
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack. For more information, see "Removing the server from a rack."
3. Remove the
access panel. For more information, see "Removing the access panel."
4. Remove the
air baffles as needed. For more information, see "Removing air baffles."
5. Remove the f
an cage. For more information, see "Replacing the fan cage."
6. Disco
nnect cables that might hinder the replacement.
