125
Connecting internal cables
Properly route the internal cables and make sure they are not squeezed.
Connecting drive cables
UIS-Cell 3010 G3 server
8SFF SAS/SATA drive cabling
Use Table 9 to select the method for connecting the 8SFF SAS/SATA drive backplane to a storage
controller depending on the type of the storage controller.
Table 9 8SFF SAS/SATA drive cabling methods
Storage controller Cabling method
Embedded RSTe RAID controller See Figure 164.
Mezzanine storage controller See Figure 165.
Standard storage controller See Figure 166.

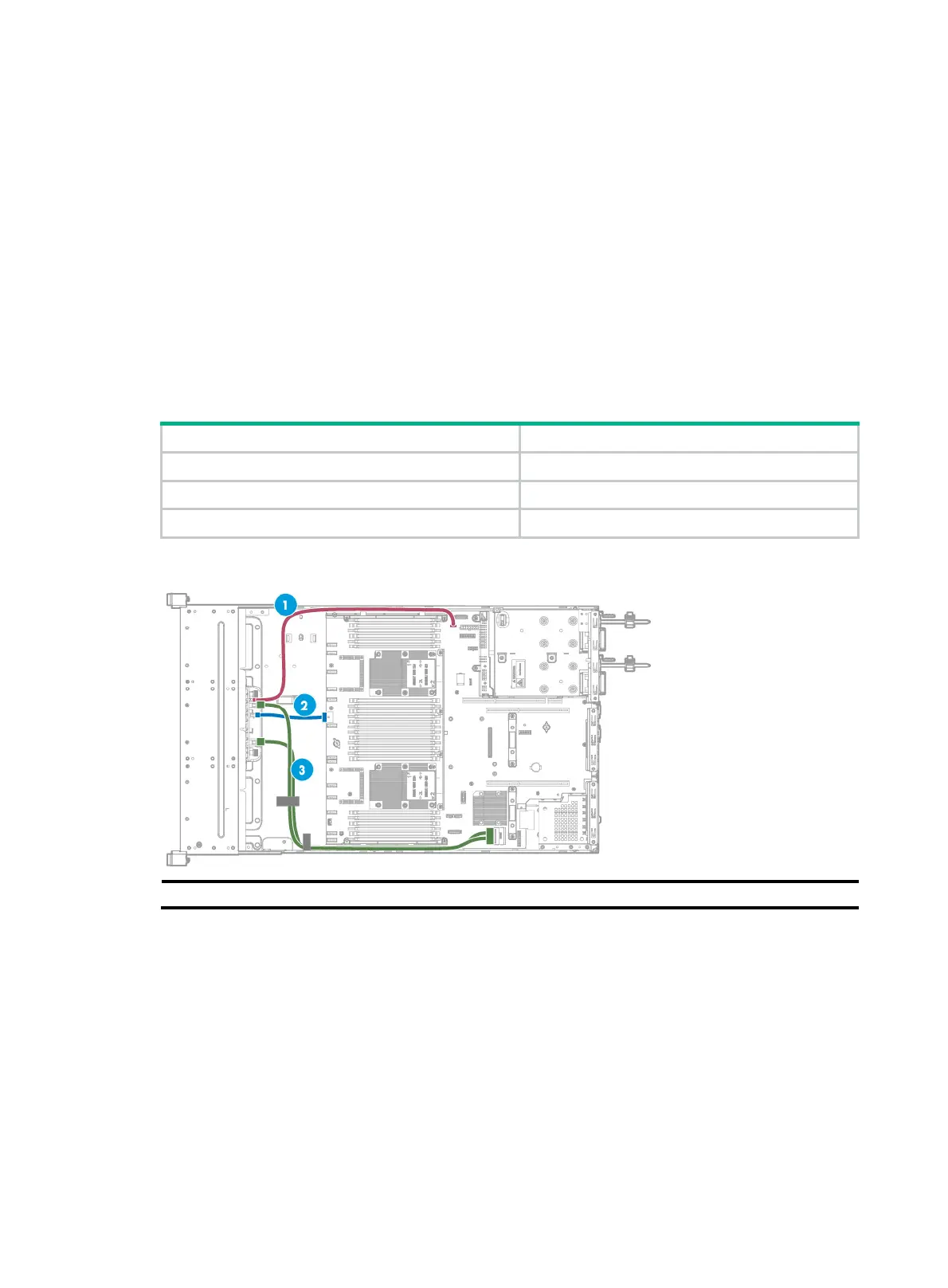

Figure 164 8SFF SATA drive backplane connected to the embedded RSTe RAID controller
(1) AUX signal cable (2) Power cord (3) SATA data cable
