126

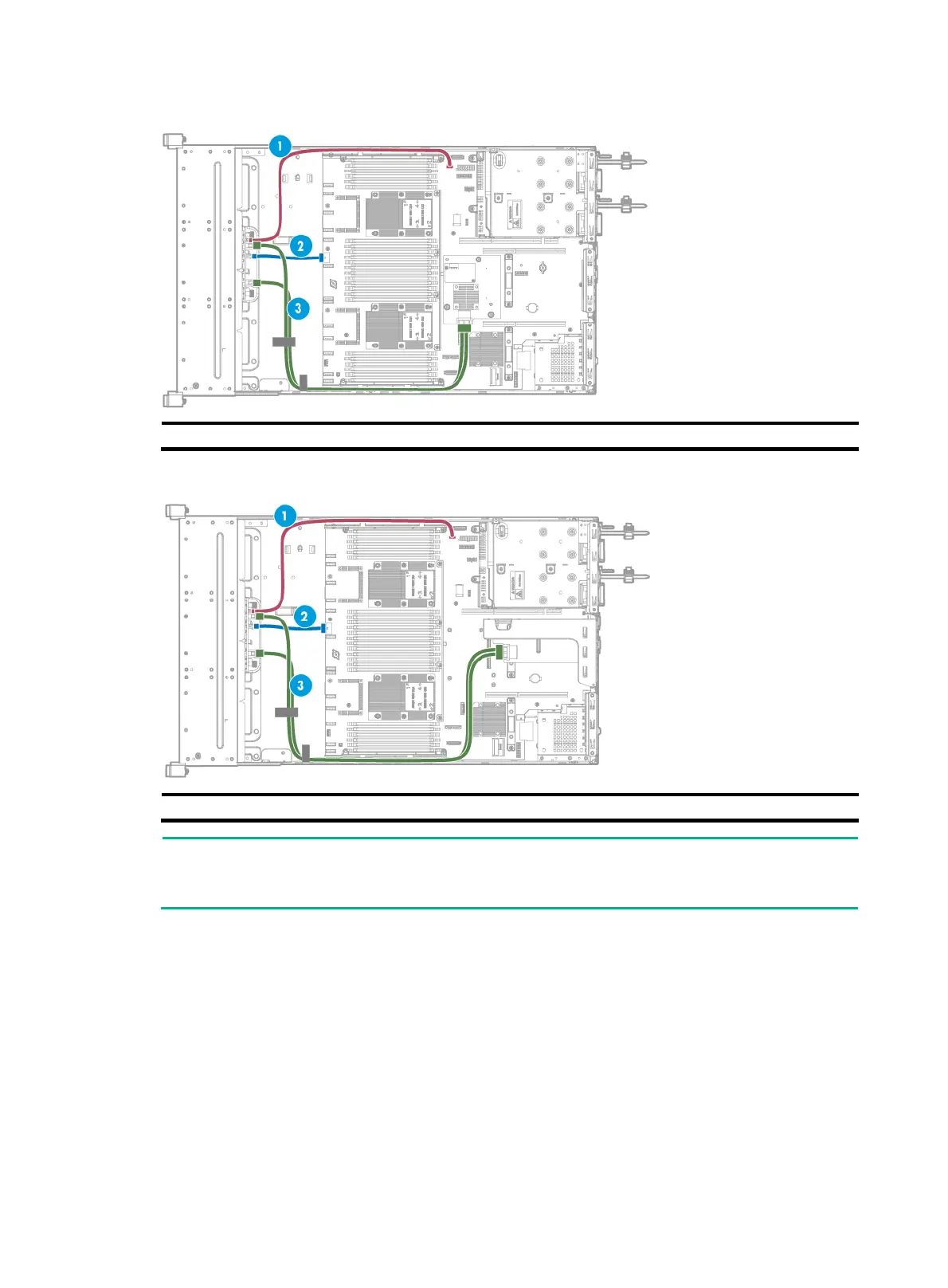

Figure 165 8SFF SAS/SATA drive backplane connected to the Mezzanine storage controller
(1) AUX signal cable (2) Power cord (3) SAS/SATA data cable
Figure 166 8SFF SAS/SATA drive backplane connected to a standard storage controller
(1) AUX signal cable (2) Power cord (3) SAS/SATA data cable
NOTE:
The cabling method is the same for standard storage controllers in PCIe slots 2 and 6 of riser cards.
This figure uses slot 6 as an example.
16SFF SAS/SATA drive cabling
To manage 16SFF SAS/SATA drives, you must use two standard storage controllers and install the
controllers in PCIe slots 1 and 2 of a riser card.
