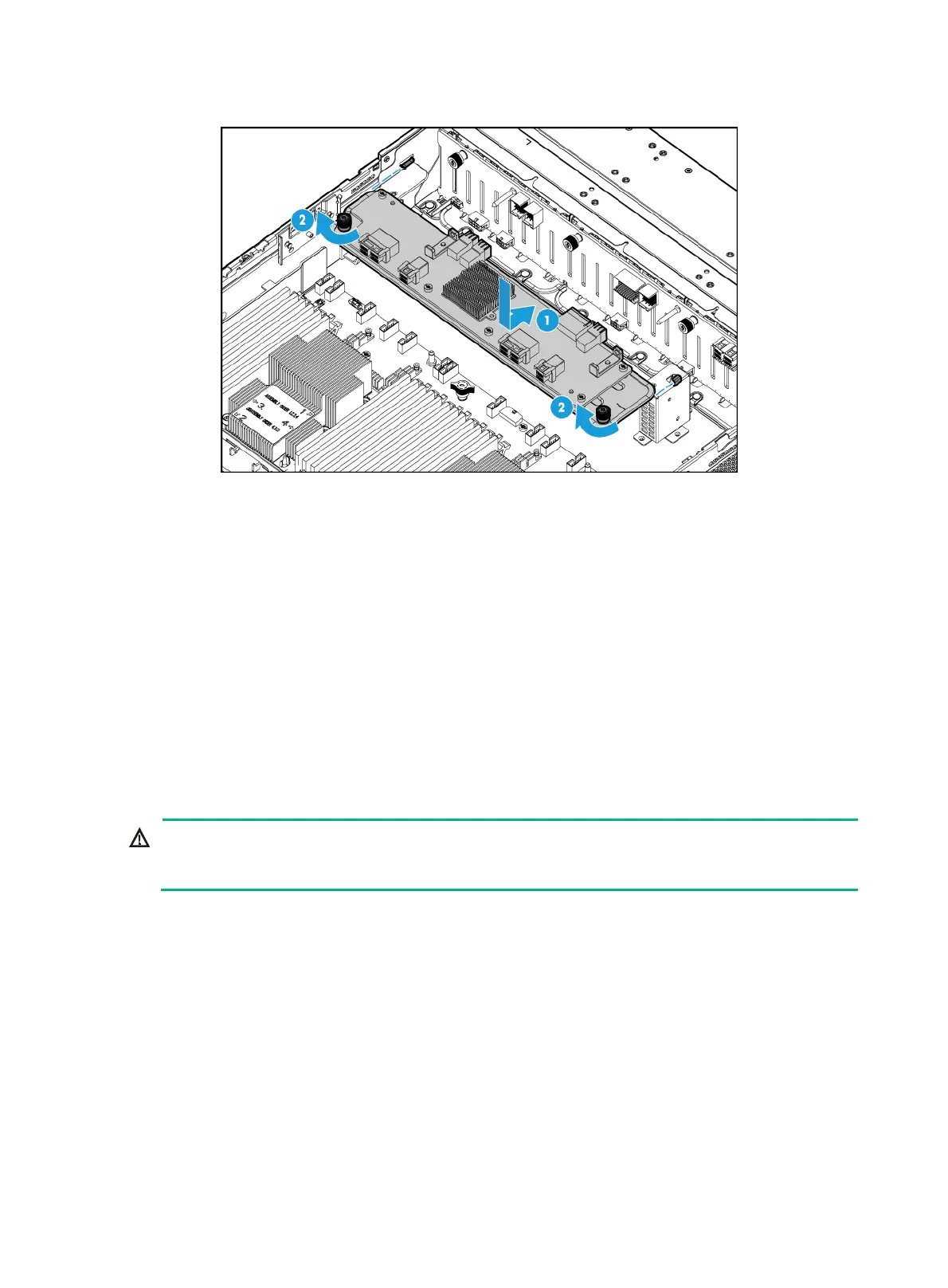

Figure 152 Installing a 25SFF drive expander module
9. Connect cables to the drive expander module.
10. Install the removed fan cage. For more information, see "Replacing the fan cage."
11. Install the re
moved chassis air baffle. For more information, see "Installing air baffles."
12. Install the access pan
el. For more information, see "Installing the access panel."
13. Rack-mount the server. For more information, see "Rack-mounting the server."
14. Con
nect the power cord. For more information, see "Connecting the power cord."
15. Powe
r on the server. For more information, see "Powering on the server."
Verifying the replacement
Log in to HDM to verity that the drive expander module is in a correct state and no alert is generated.
For more information, see HDM online help.
Replacing the drive backplane
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
Removing the drive backplane
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack. For more information, see "Removing the server from a rack."
3. Remove the
access panel. For more information, see "Removing the access panel."
4. Remove the
chassis air baffle if it hinders the replacement. For more information, see
"Removing air baffles."
5. Remove the fan cage if it hinders the replacement. For more information, see "Replacing the
fan cag
e."
6. Remove the security bezel, if any. For more information, see "Replacing the security bezel."
