NOTE:
The cabling method is the same for standard storage controllers in PCIe slots 2 and 8 of riser cards.
This figure uses slot 8 as an example.
UIS-Cell 3040 G3 server
Use Table 12 to select the method for connecting the 8LFF drive backplane to a storage controller
depending on the type of the storage controller.
Table 12 8LFF drive cabling methods
Storage controller Cabling method
Embedded RSTe RAID controller See Figure 172.
Mezzanine storage controller See Figure 173.
Standard storage controller See Figure 174.

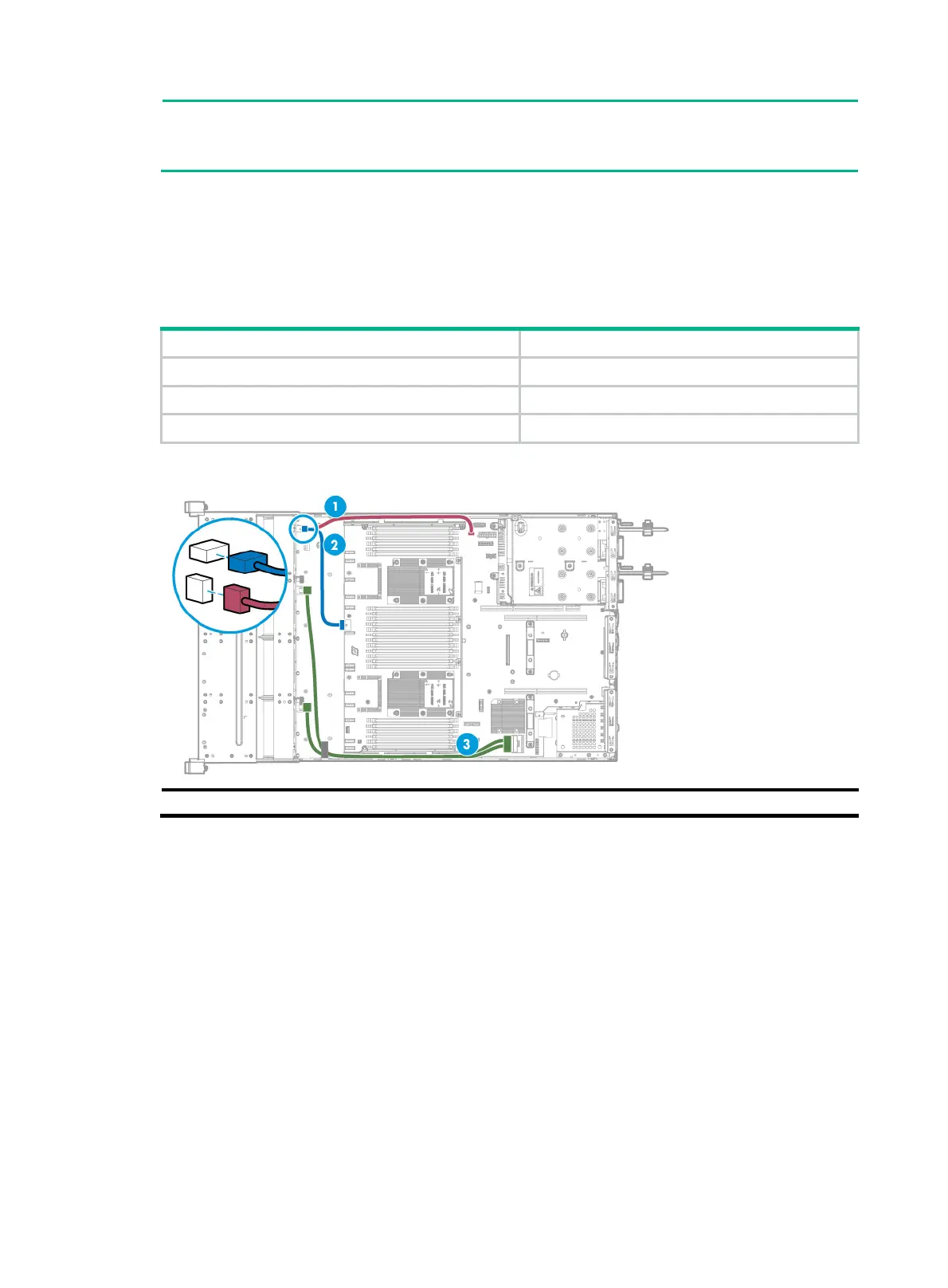

Figure 172 8LFF SATA drive backplane connected to the embedded RSTe RAID controller
(1) AUX signal cable (2) Power cord (3) SATA data cable
