UIS-Cell 3030 G3 server
12LFF SAS/SATA drive cabling
Use Table 11 to select the method for connecting the 12LFF drive backplane to a storage controller
depending on the type of the storage controller.
Table 11 12LFF drive cabling methods
Storage controller Cabling method
Mezzanine storage controller See Figure 170.
Standard storage controller See Figure 171.

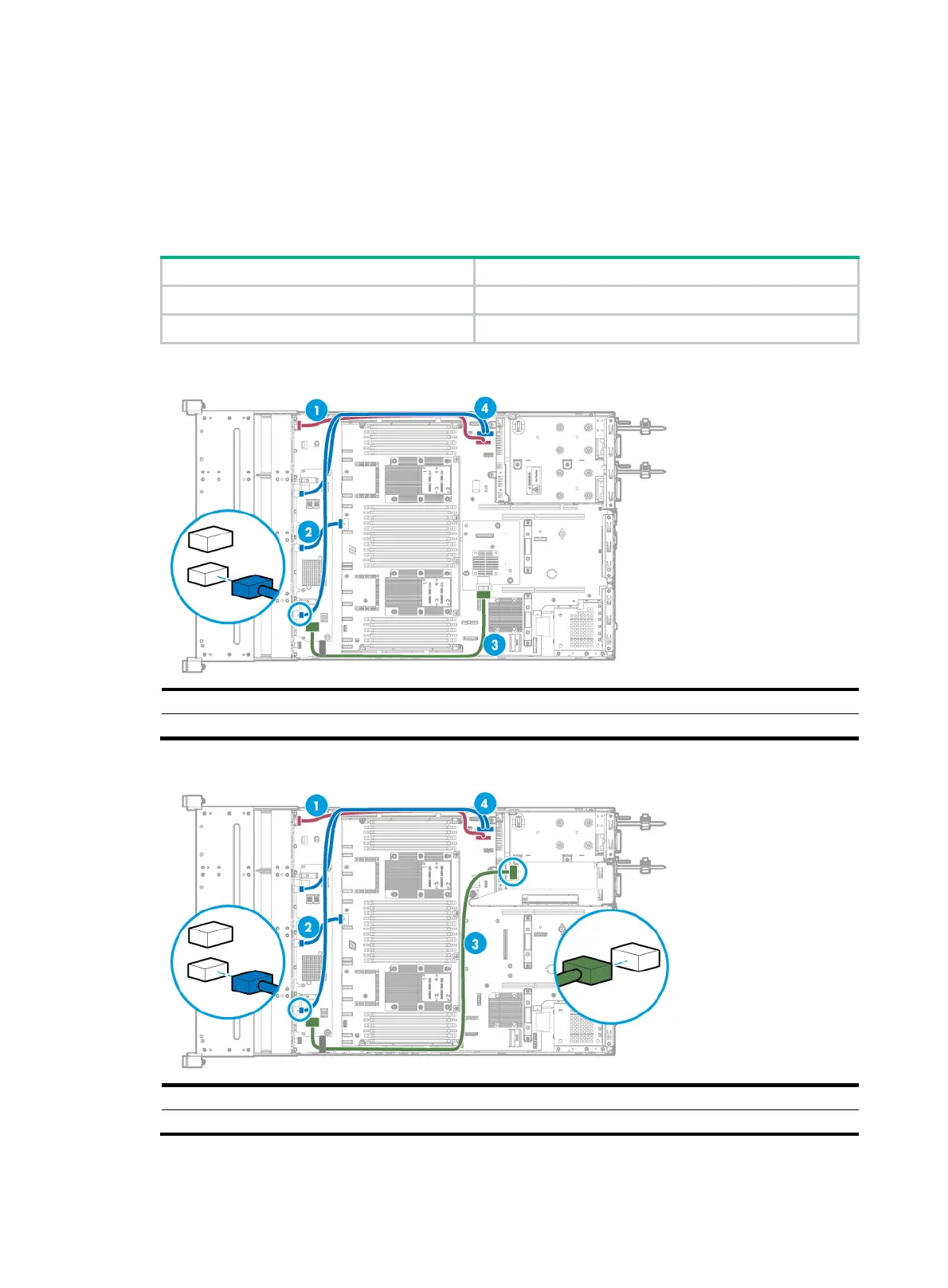

Figure 170 12LFF SAS/SATA drive backplane connected to the Mezzanine storage controller
(1) AUX signal cable (2) Power cord 1
(3) SAS/SATA data cable (4) Power cord 2
Figure 171 12LFF SAS/SATA drive backplane connected to a standard storage controller
(1) AUX signal cable (2) Power cord 1
(3) SAS/SATA data cable (4) Power cord 2
