128

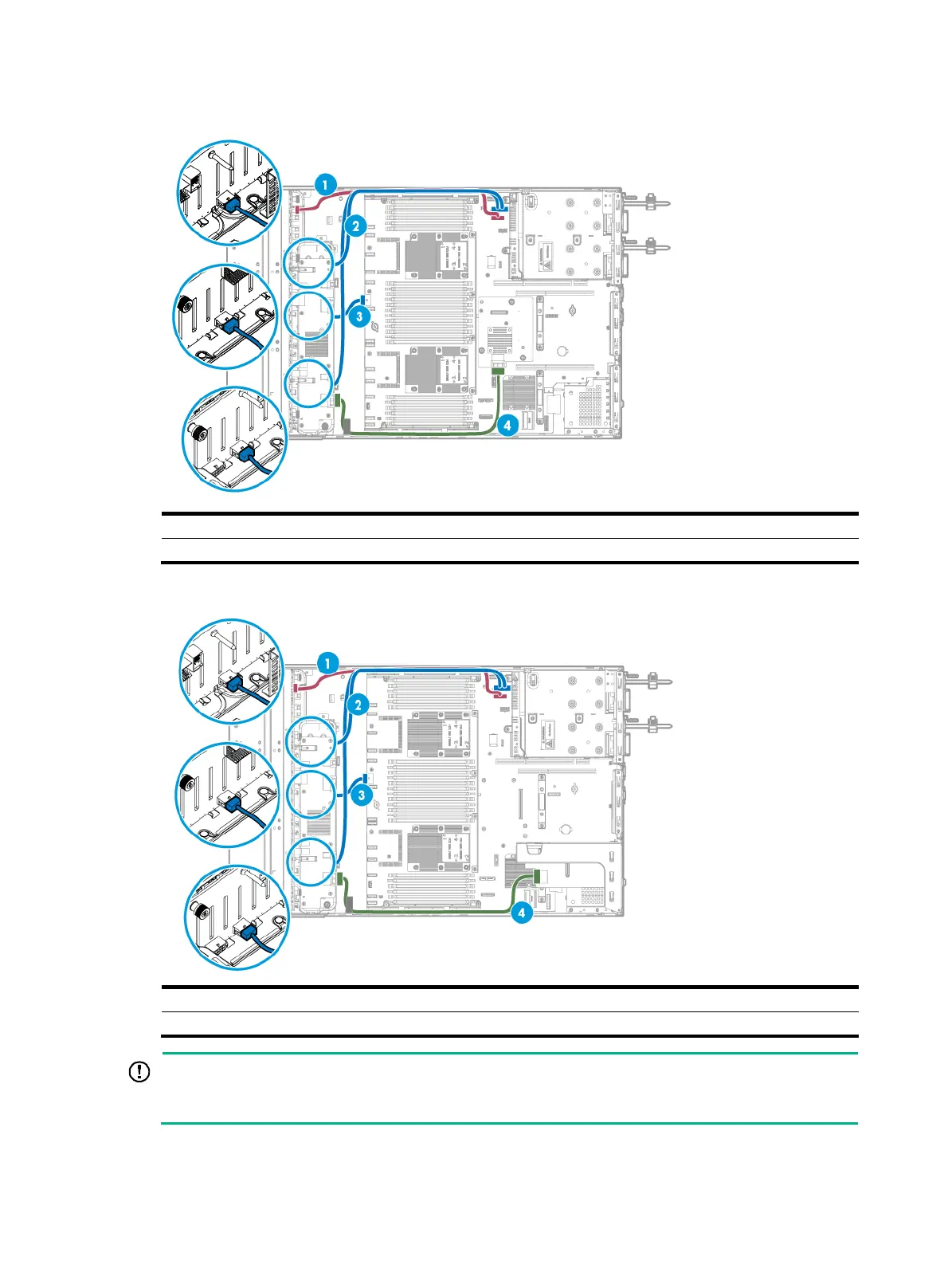

Figure 168 25SFF SAS/SATA drive backplane connected to the Mezzanine storage controller
(1) AUX signal cable (2) Power cord 1
(3) Power cord 2 (4) SAS/SATA data cable
Figure 169 25SFF SAS/SATA drive backplane connected to a standard storage controller
(1) AUX signal cable (2) Power cord 1
(3) Power cord 2 (4) SAS/SATA data cable
IMPORTANT:
To use a standard storage controller for the drives, you must install the controller in PCIe slot 2 of a
riser card.
