DIMM rank classification label
A DIMM rank is a set of memory chips that the system accesses while writing or reading from the
memory. On a multi-rank DIMM, only one rank is accessible at a time.

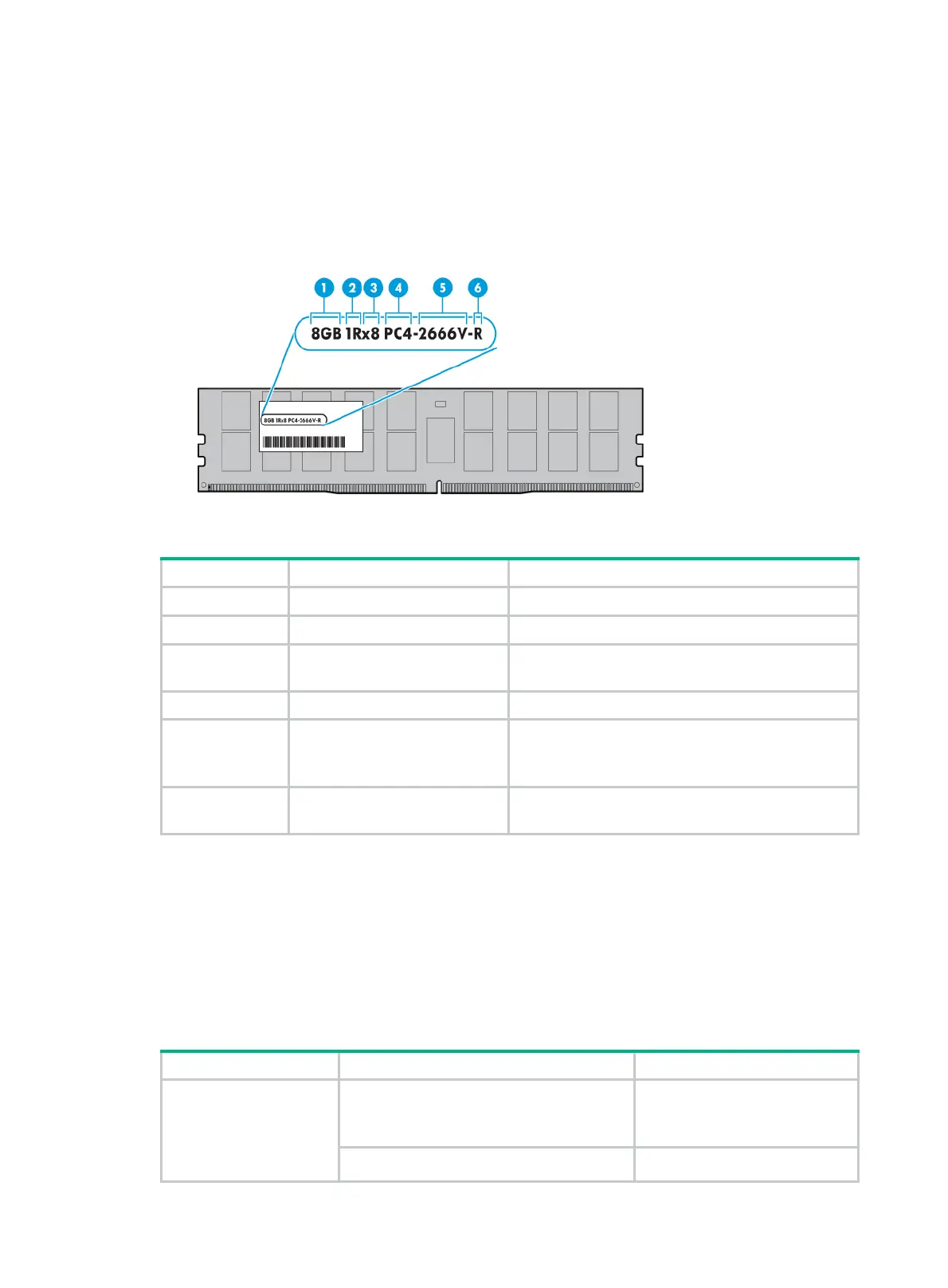

To determine the rank classification of a DIMM, use the label attached to the DIMM, as shown
in Figure 195.
Figure 195
DIMM rank classification label
Table 22 DIMM rank classification label description
Callout Description Remarks
1 Capacity N/A
2 Number of ranks N/A
3 Data width
• x4—4 bits.
• x8—8 bits.
4 DIMM generation Only DDR4 is supported.
5 Data rate
• 2133P—2133 MHz.
• 2400T—2400 MHz.
• 2666V—2666 MHz.
6 DIMM type
• L—LRDIMM.
• R—RDIMM.
HDDs and SSDs
Drive configurations
Table 23 presents the drive configurations available for the servers and their compatible types of
storage controllers.
Table 23 Drive and storage controller configurations
Server model Drive configuration Storage controller
UIS-Cell 3010 G3
8 SFF SAS/SATA drives
• Embedded RSTe
• Mezzanine
• Standard
16 SFF SAS/SATA drives Standard
