13. Rack-mount the server. For more information, see "Rack-mounting the server."
14. Connect the power cord. For more information, see "Connecting the power cord."
15. Powe
r on the server. For more information, see "Powering on the server."
Verifying the installation
Log in to HDM to verify that the Mezzanine storage controller, flash card, and supercapacitor are
operating correctly. For more information, see HDM online help.
Installing a standard storage controller and a power fail
safeguard module
Procedure
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack. For more information, see "Removing the server from a rack."
3. Remove the
access panel. For more information, see "Removing the access panel."
4. Remove the
air baffles as needed. For more information, see "Removing air baffles."
5. Remove the f
an cage. For more information, see "Replacing the fan cage."
6. (Option
al.) Install the flash card of the power fail safeguard module to the standard storage
controller:
a. Install the two internal threaded studs supplied with the power fail safeguard module on the
standard storage controller, as shown in Figure 89. Th
en slowly insert the flash card
connector into the socket and use screws to secure the flash card on the storage controller,
as shown in Figure 90.

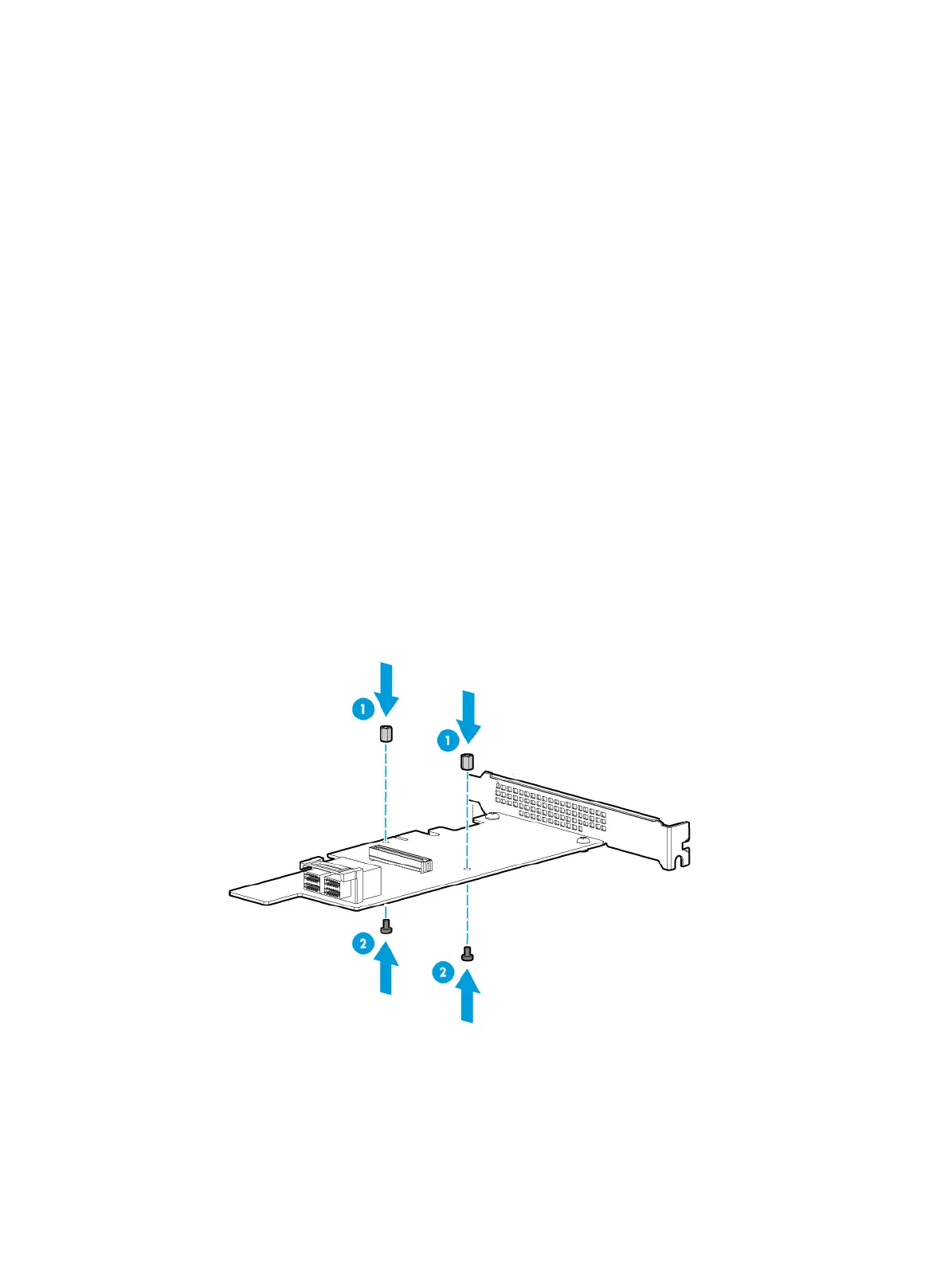

Figure 89
Installing the internal threaded studs
