107

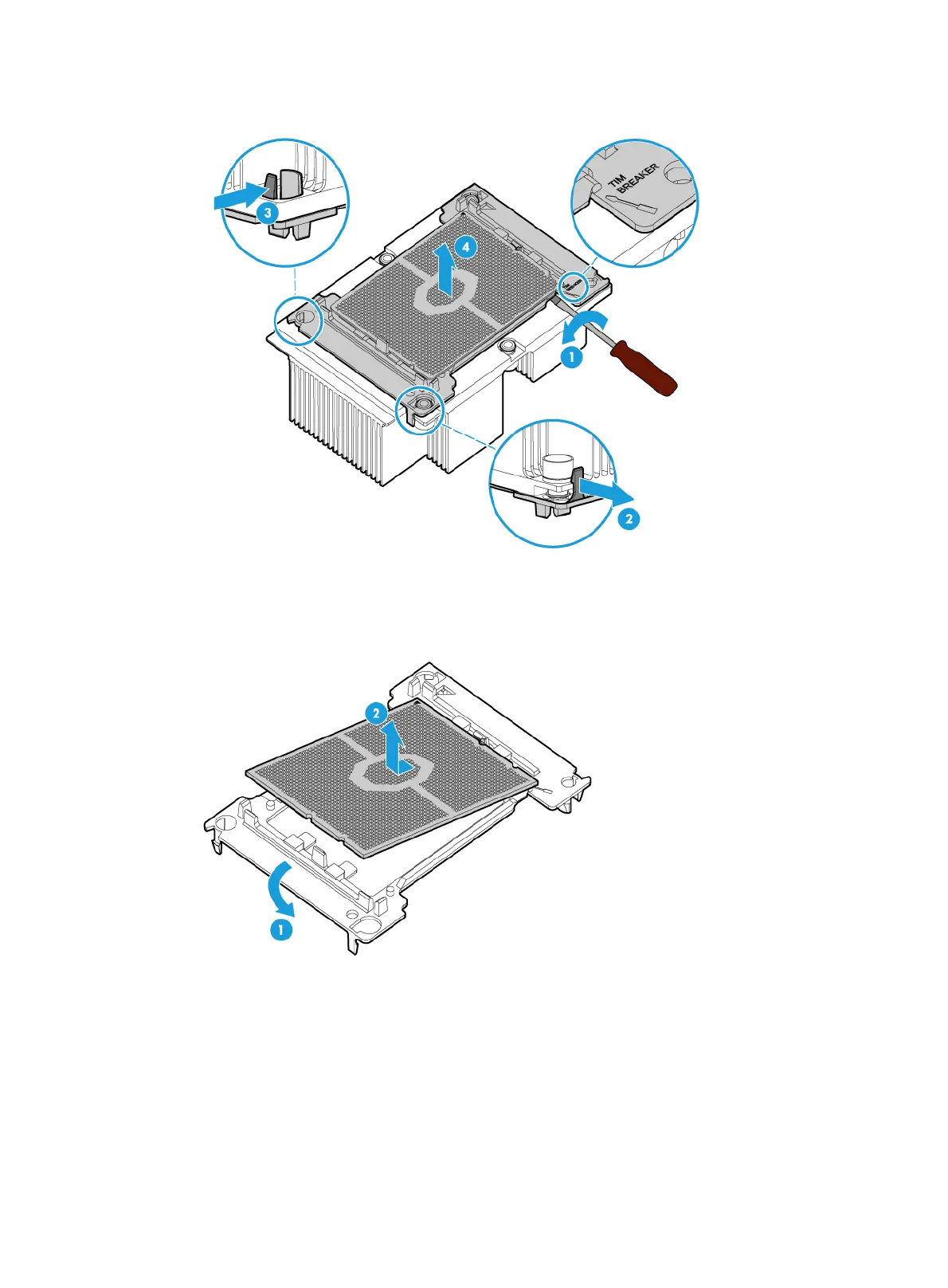

Figure 141 Removing the processor retaining bracket
7. Separate the processor from the retaining bracket with one hand pushing down and the other
hand tilting the processor, as shown in Figure 142.
Figure 142
Separating the processor from the retaining bracket
Installing a processor
1. Install the processor onto the retaining bracket. For more information, see "Installing
processors."
2. Smear thermal grease onto the processor:
a. Clean the processor and heatsink with isopropanol wipes. Allow the isopropanol to
evaporate before continuing.
