When multiple cable straps are used in the same rack, stagger the strap location, so that the straps
are adjacent to each other when viewed from top to bottom. This positioning will enable the slide rails
to slide easily in and out of the rack.
To secure cables to slide rails by using cable straps:
1. Hold the cables against a slide rail.
2. Wrap the strap around the slide rail and loop the end of the cable strap through the buckle.
3. Dress the cable strap to ensure that the extra length and buckle part of the strap are facing
outside of the slide rail.

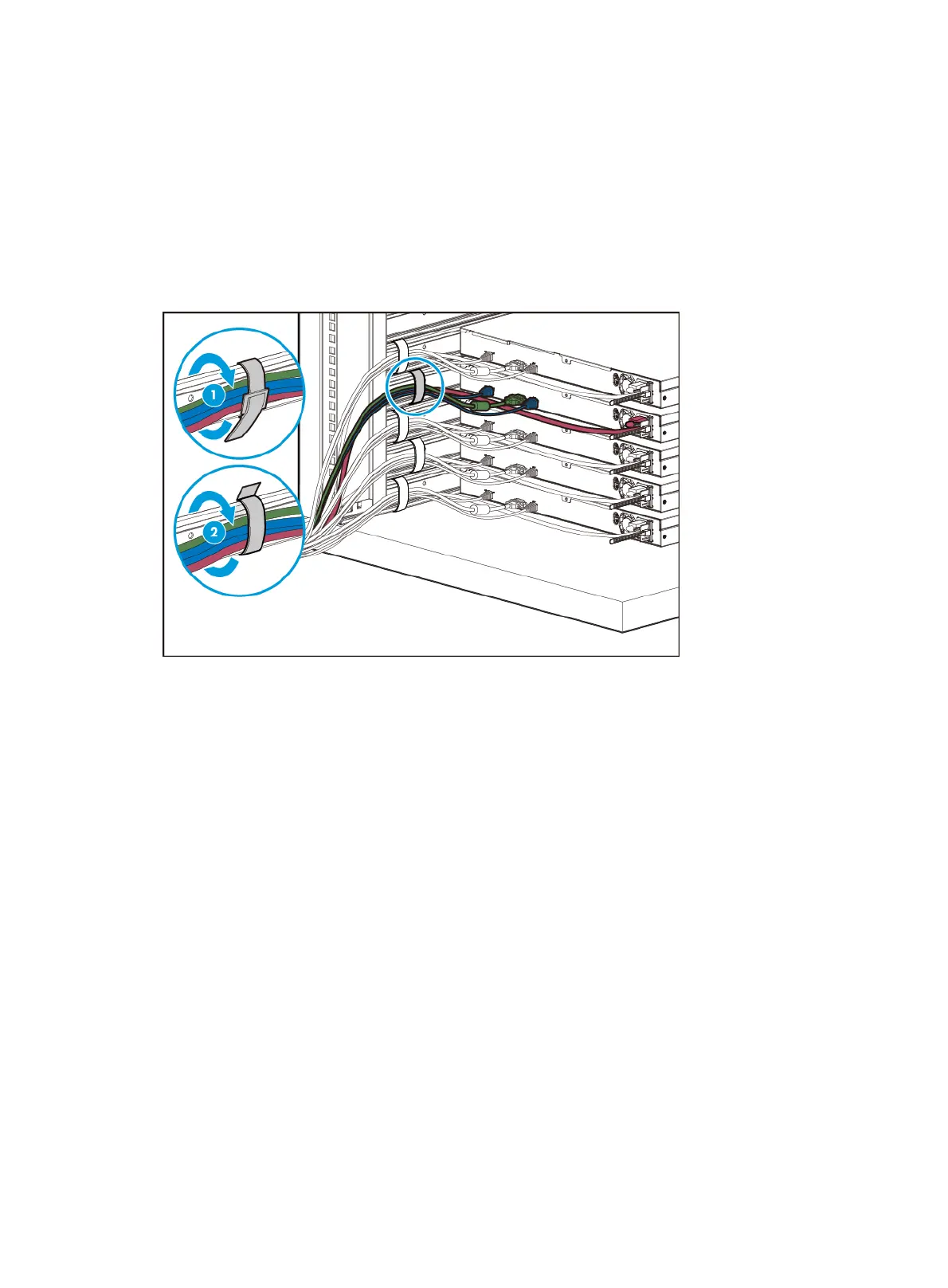

Figure 12 Securing cables to a slide rail
Removing the server from a rack
1. Power down the server. For more information, see "Powering off the server."
2. Disconnect all peripheral cables from the server.
3. Extend the server from the rack, as shown in Figure 13.
a. Open the lat
ches of the chassis ears.
b. Loosen the captive screws.
c. Slide the server out of the rack.
