143
Item Description
(13) mLOM Ethernet adapter
Installed on the mLOM Ethernet adapter connector of the system board
for network expansion.
(14) Chassis N/A
(15) Chassis ears
Attach the server to the rack. The right ear is integrated with the front I/O
component. The left ear is available in two types: one with VGA and USB
2.0 connectors and one without connectors.
(16) Drive Drive for data storage, which is hot swappable.
(17) M.2 transfer module
Expands the server with a maximum of two SATA M.2 SSDs.
The module is available only for the UIS-Cell 3010 G3 server.
(18) Optical drive Used for data backup.
(19) Drive expander module Provides additional data channels for front drives.
(20) Drive backplane Provides power and data channels for drives.
(21) Supercapacitor holder Secures a supercapacitor in the chassis.
(22) Memory Stores computing data and data exchanged with external storage.
(23) Supercapacitor
Supplies power to the flash card of the power fail safeguard module,
which enables the storage controller to back up data to the flash card for
protection when power outage occurs.
(24) Fan blank Installed in an empty fan bay to ensure good ventilation.
(25) Fan cage Used for holding fans.
(26) Processor retaining bracket Attaches a processor to the heatsink.
(27) Chassis air baffle Provides ventilation aisles for airflows in the chassis.
(28) Fan Supports hot swapping and N+1 redundancy.
Front panel
Front panel view of the server
Figure 186, Figure 187, Figure 188, and Figure 189 show the front panel views of UIS-Cell 3010 G3,
UIS-Cell 3020 G3, UIS-Cell 3030 G3, and UIS-Cell 3040 G3 servers, respectively.

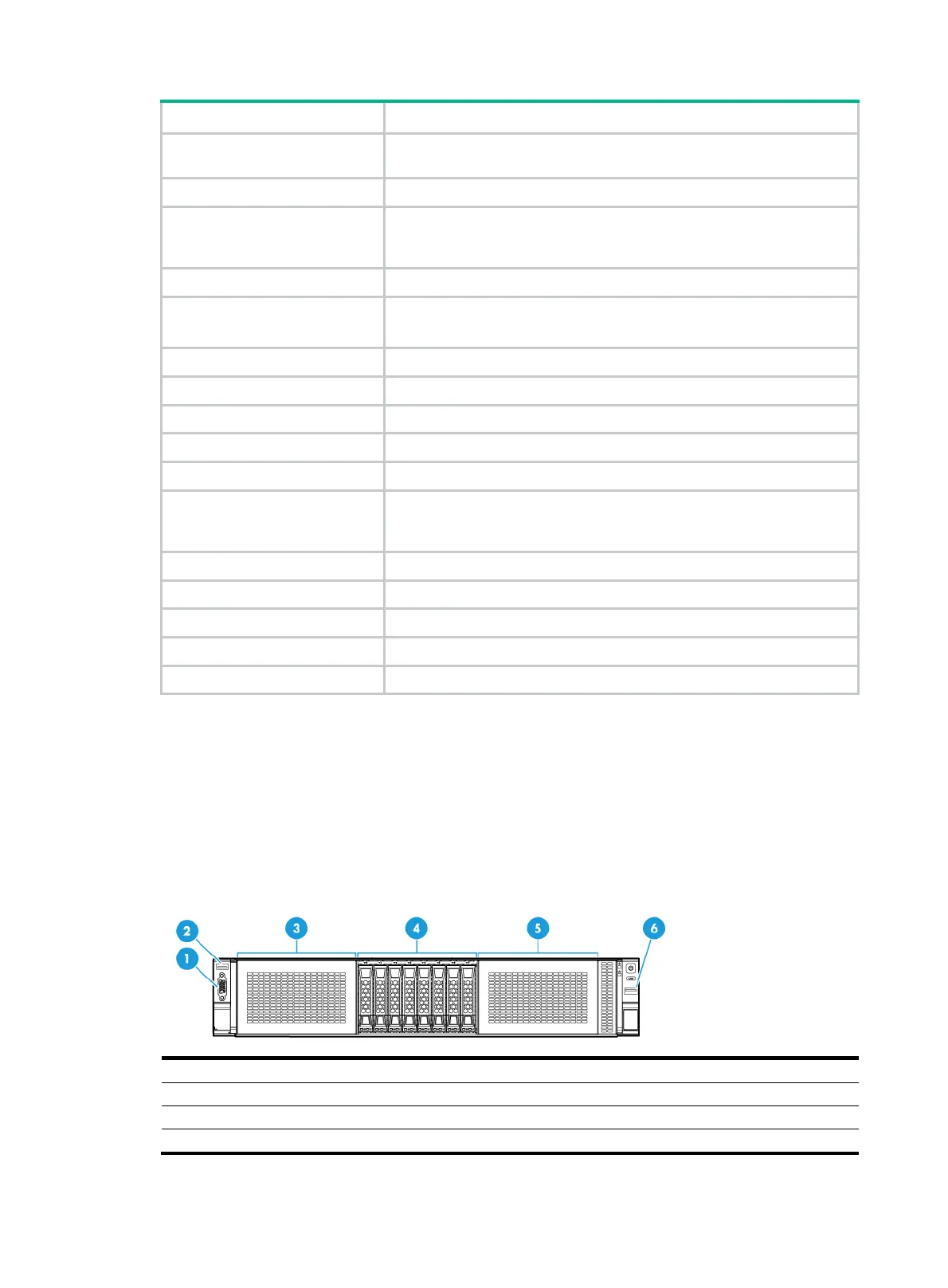

Figure 186 UIS-Cell 3010 G3 front panel
(1) VGA connector (optional) (2) USB 2.0 connector (optional)
(3) Drive cage bay 1 for optical drives or SATA M.2 SSDs
(4) Drive cage bay 2 for 8SFF SAS/SATA drives
(5) Drive cage bay 3 for 8SFF SAS/SATA drives (6) USB 3.0 connector
