87
c. (Optional.) Use a T15 Torx screwdriver to lock the locking lever, as shown by callout 3
in Figure 119.

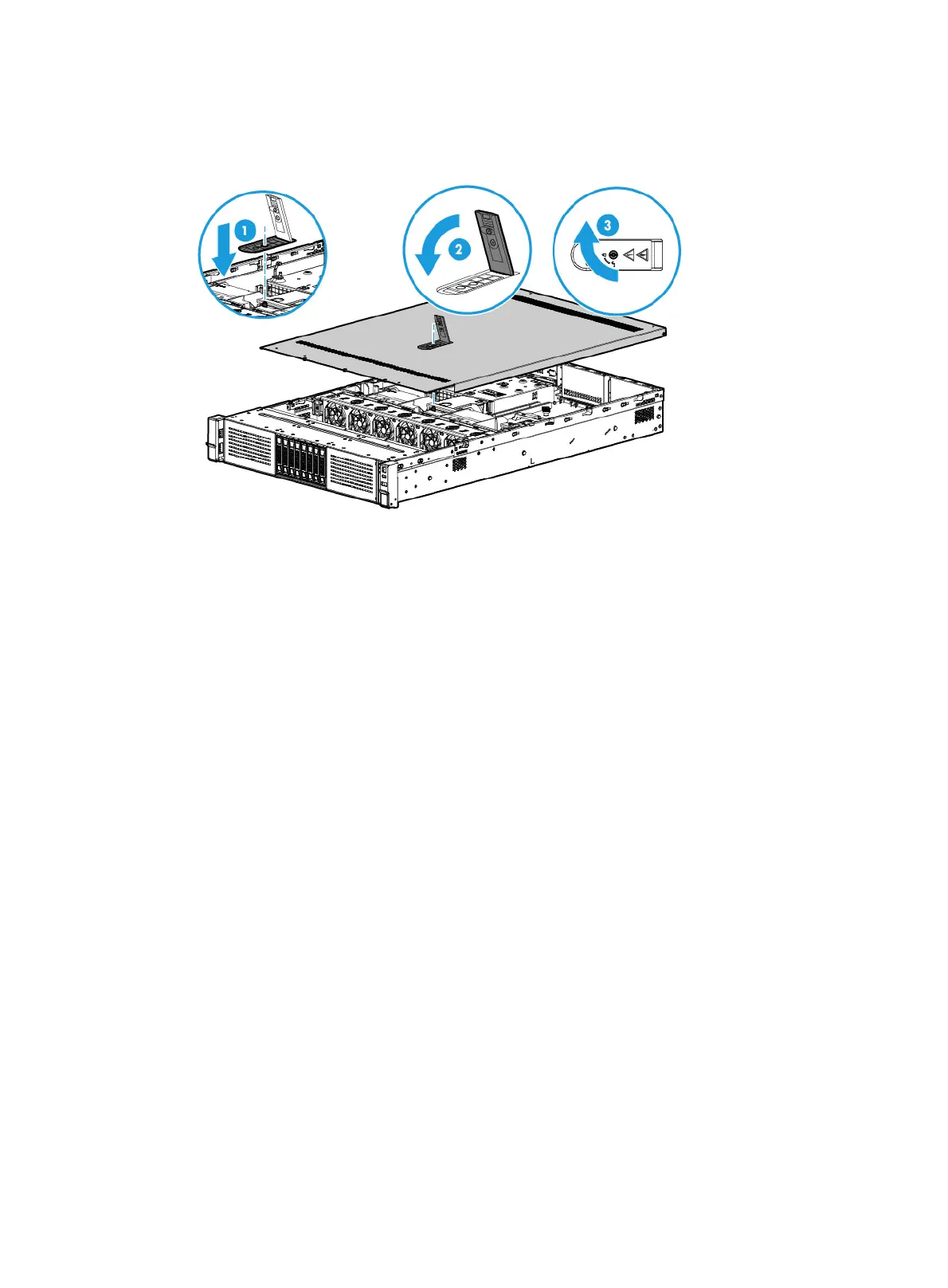

Figure 119
Installing the access panel
4. Rack-mount the server. For more information, see "Installing the server."
5. Connect the power cord. For more information, see "Connecting the power cord."
6. Powe
r on the server. For more information, see "Powering on the server."
Replacing a power supply
The power supplies are hot swappable.
If two power supplies are installed and sufficient space is available for replacement, you can replace
a power supply without powering off or removing the server from the rack.
Procedure
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack. For more information, see "Removing the server from a rack."
3. Remove the
power cord from the power supply:
a. Press the tab to disengage the ratchet from the tie mount, slide the cable clamp outward,
and then release the tab, as shown by callouts 1 and 2 in Figure 120.
b. Open the
cable clamp and remove the power cord out of the clamp, as shown by callouts 3
and 4 in Figure 120.
c. Unpl
ug the power cord, as shown by callout 5 in Figure 120.
